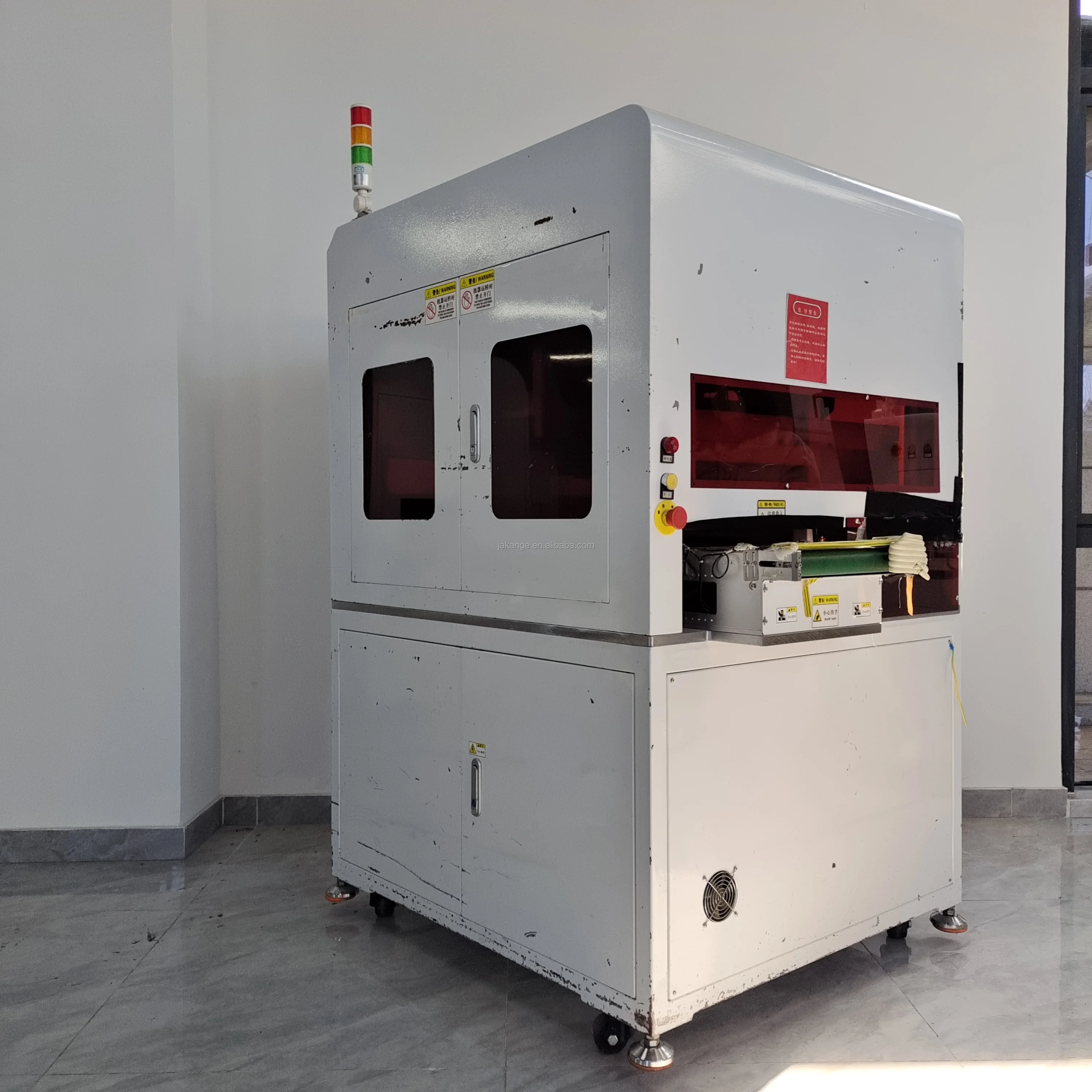

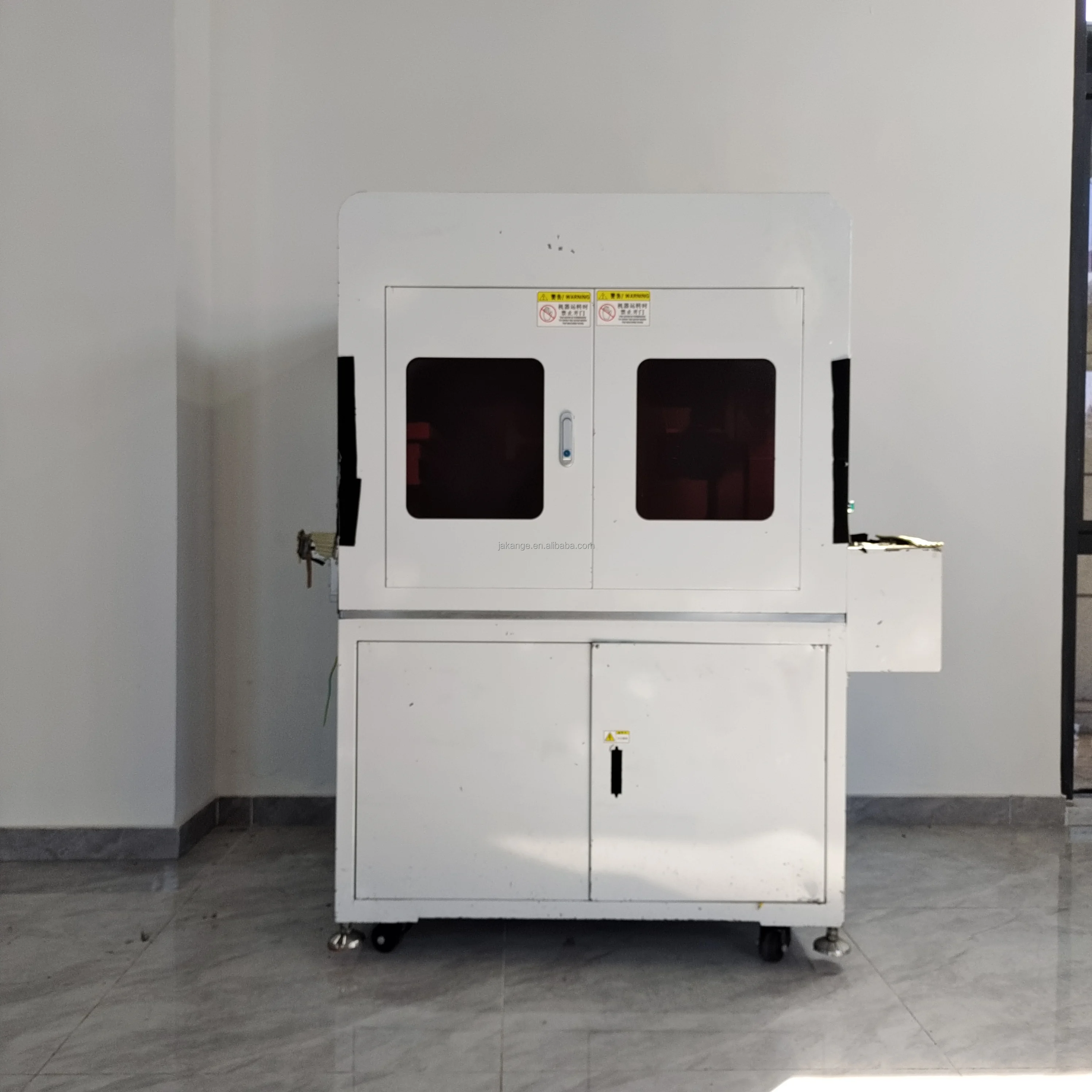

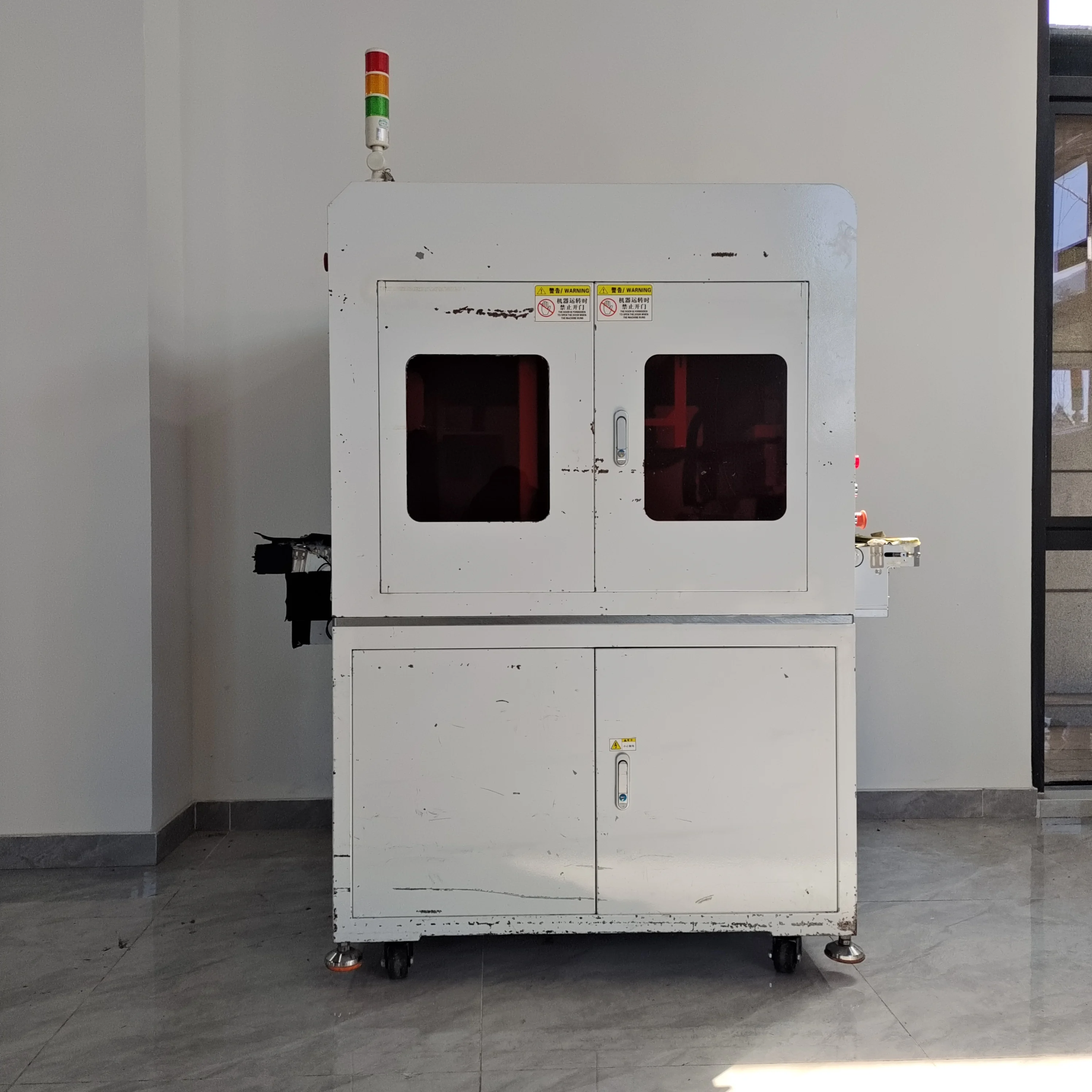

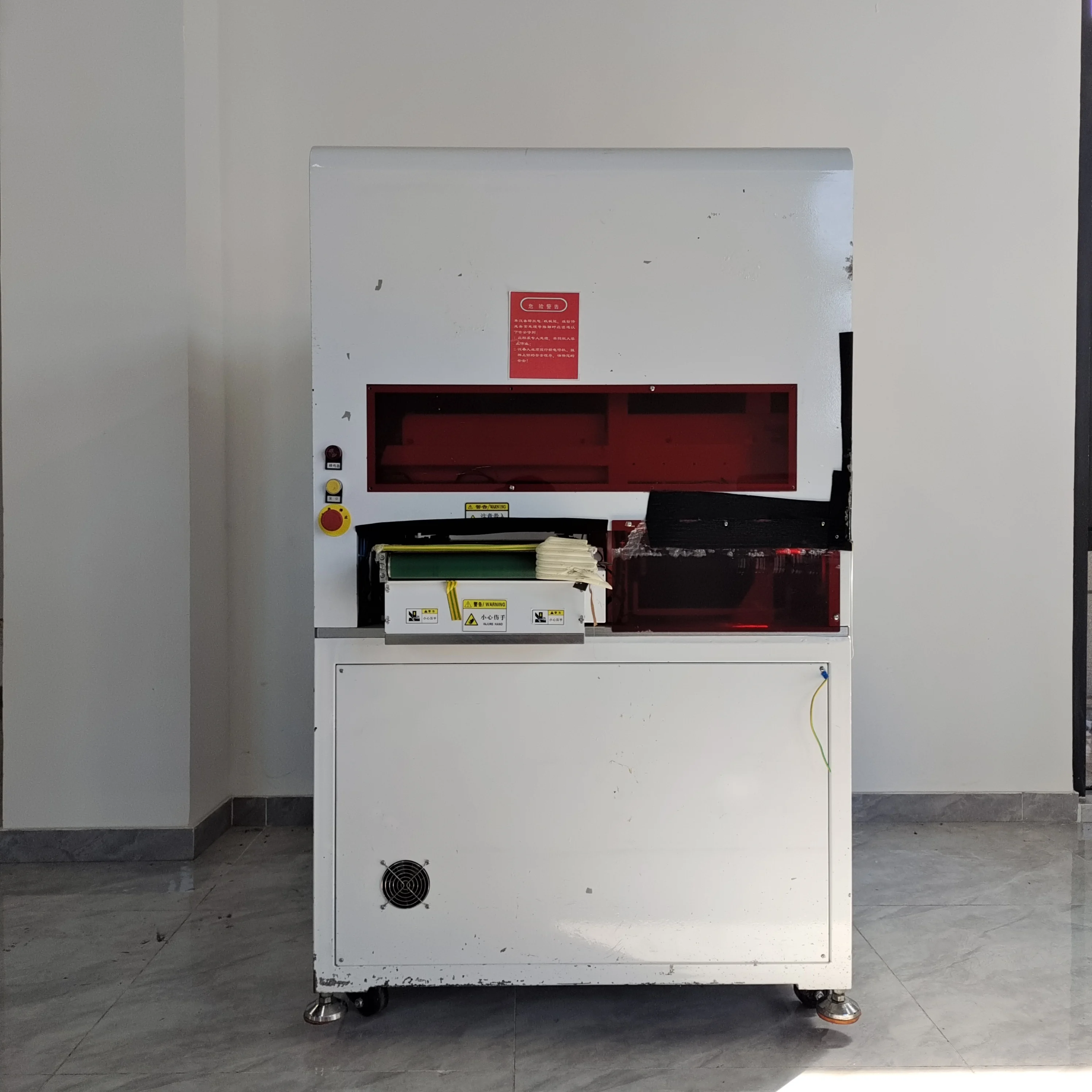

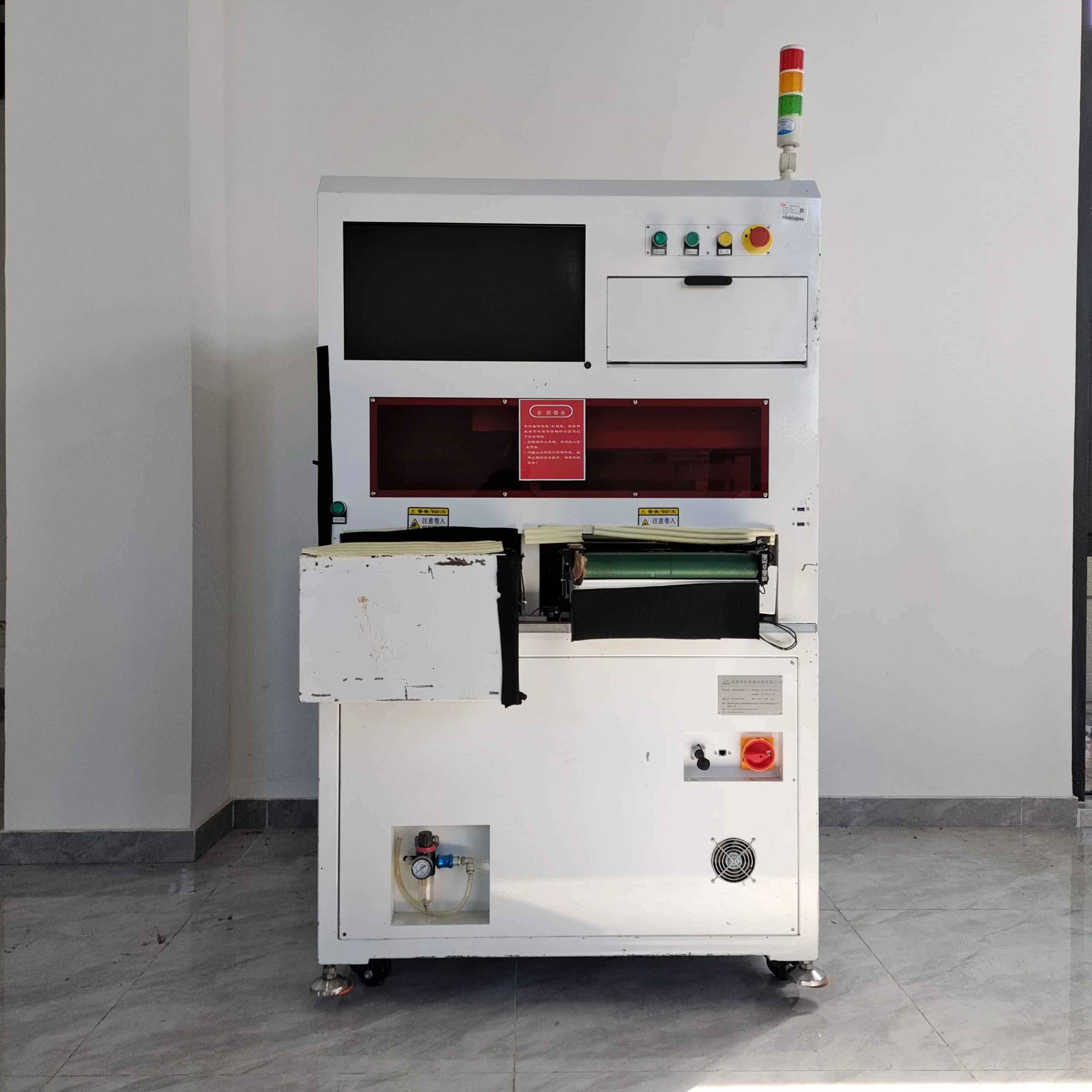

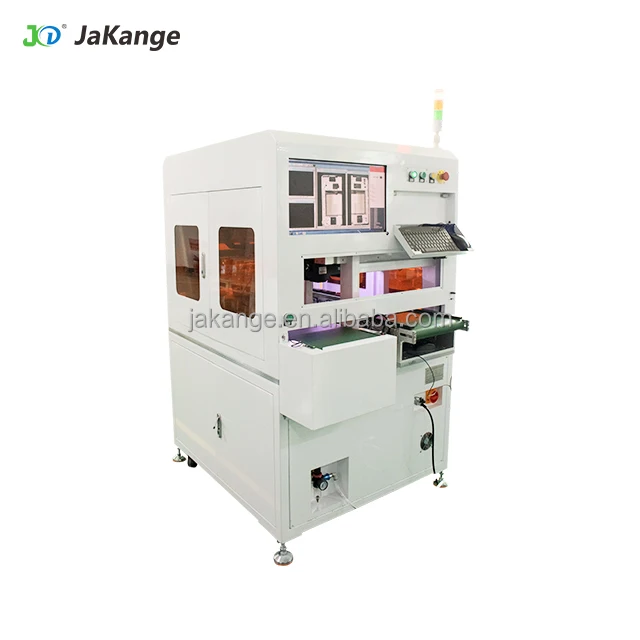

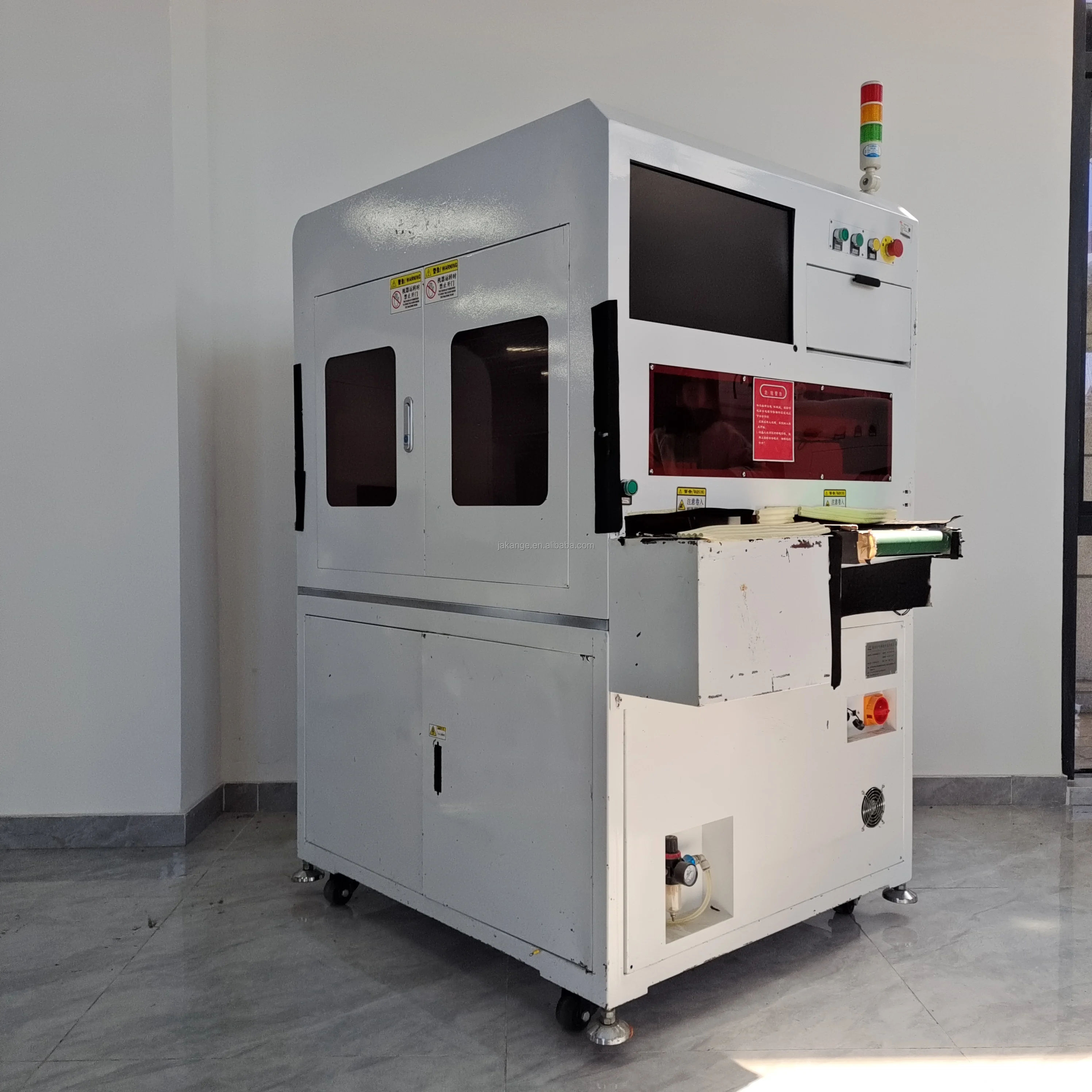

3D Vipassana Detector Pipeline Inspection Machine AOI Optical Inspection Machine AOI Optical Automatic Detection Instrument

Defective product prompt method

he screen displays OK or NG+ buzzer

Equipment General Data

10-12 inch tablet

UPH

≥ 350 PCS

Feeding start mode/Handling of defective products

Move the manipulator + return line

3D scanning speed/Product positioning mode

50mm/s

Equipment Size (mm)

1500 x 800 x 1680 ( Tri-color lights not included )

Network

Upload MES

Main function

Screw floating height, missing detection
FPC, BTB presence and positive and negative detection
Steel plate leakage detection
Whether the waterproof label is detected
Qr code reading and upload to the station
Whether the heat dissipation film of the shield is detected
Whether the light sensing rubber sleeve and the power supply key rubber sleeve are detected
Whether the conductive cotton is detected
Detection of foreign bodies on SPK
Material detection.
