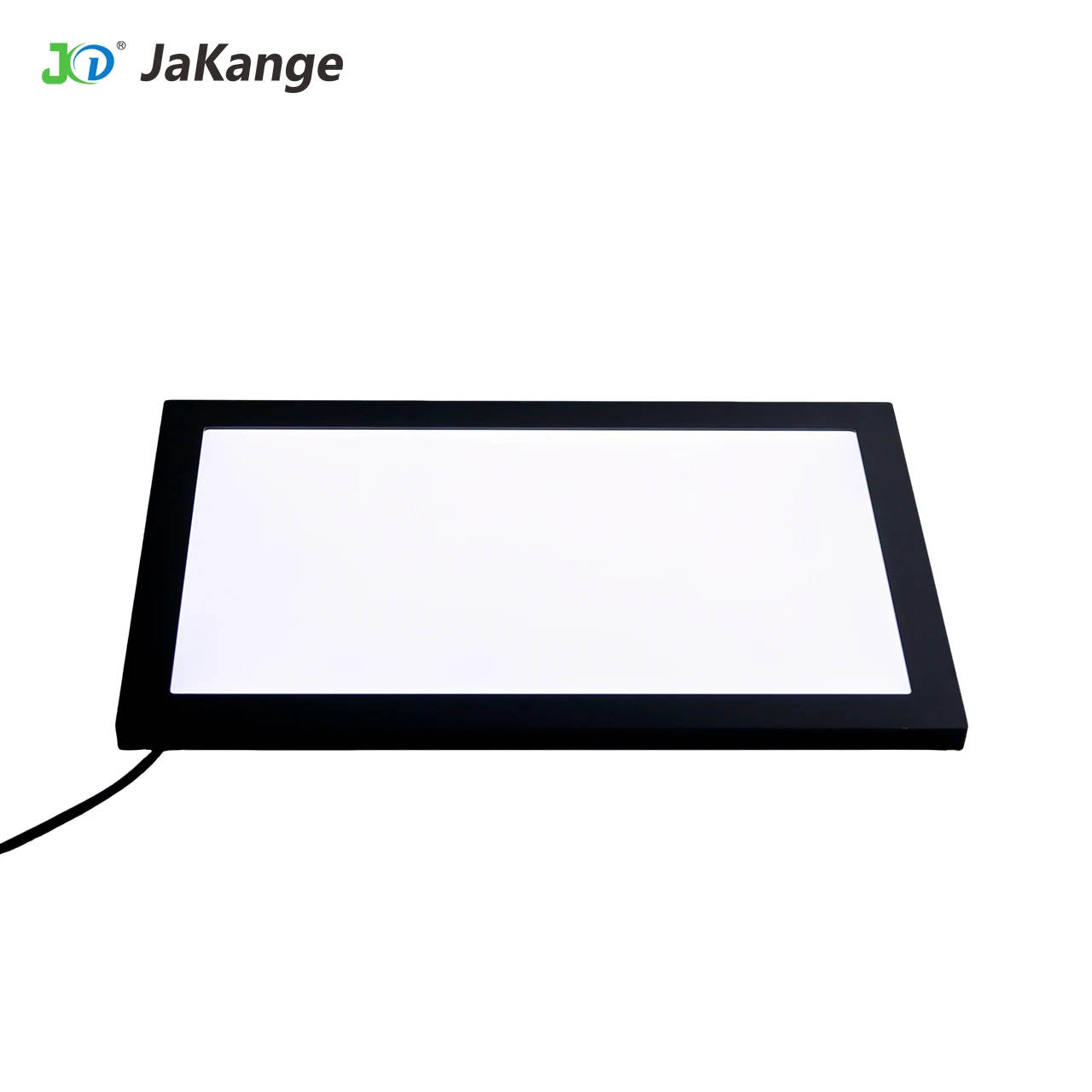

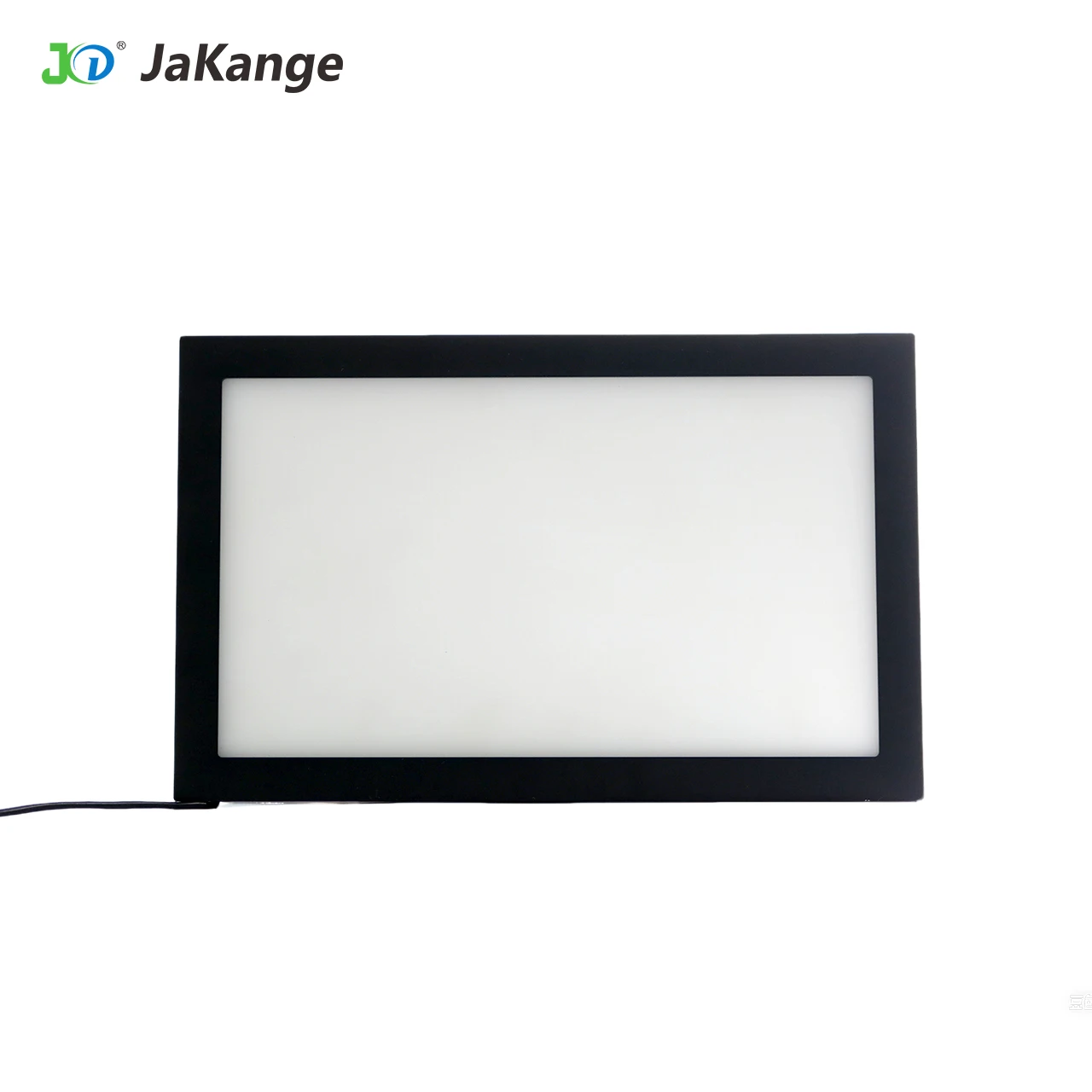

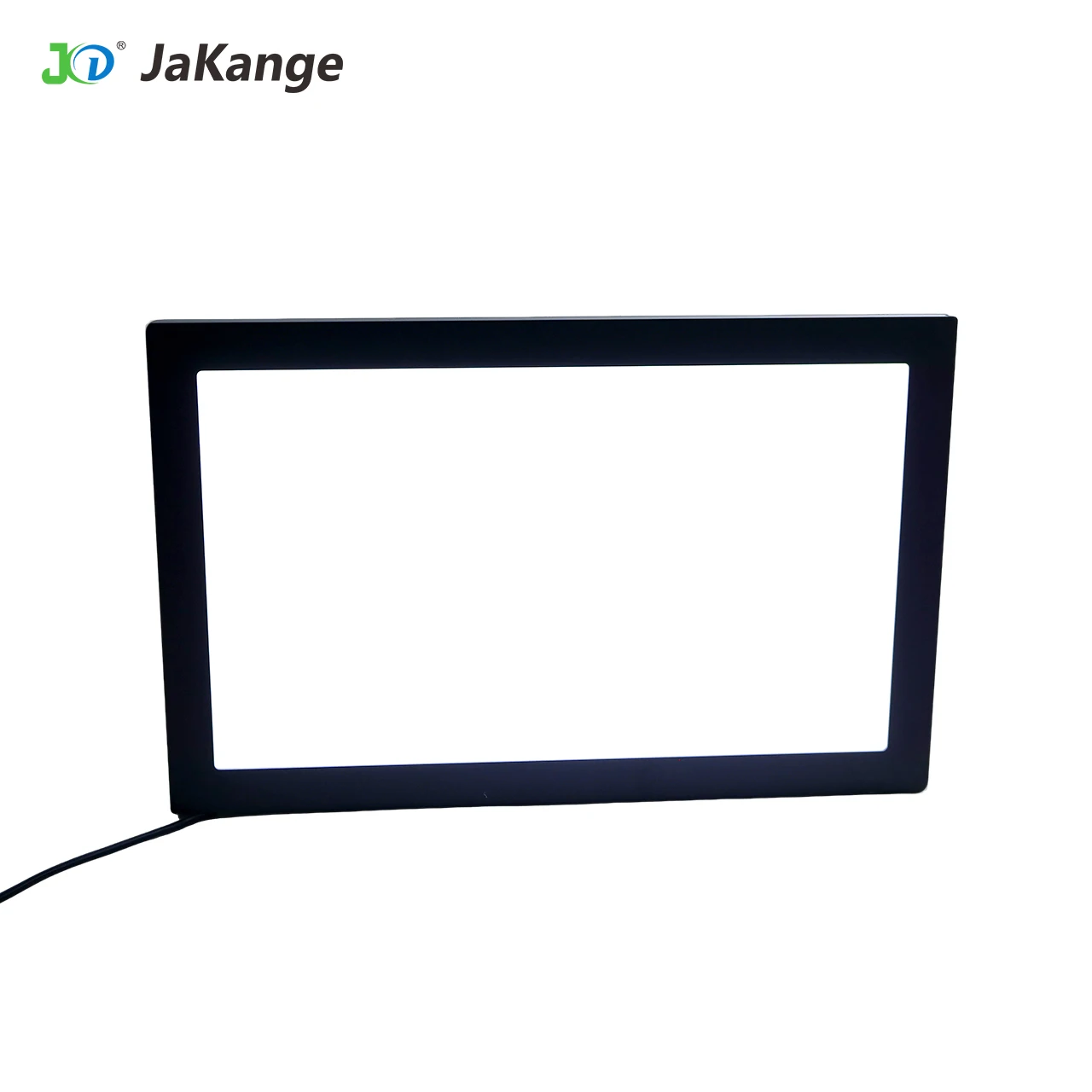

Backlighting Source Suitable for Object Contour Detection and Size Detection

Description

+86-755 2828 4299

[email protected]

Description

Product Description

product backlighting source suitable for object contour detection and size detection676-2

product backlighting source suitable for object contour detection and size detection676-3

product backlighting source suitable for object contour detection and size detection676-4

product backlighting source suitable for object contour detection and size detection676-5

product backlighting source suitable for object contour detection and size detection676-6

product backlighting source suitable for object contour detection and size detection676-7

product backlighting source suitable for object contour detection and size detection676-8

product backlighting source suitable for object contour detection and size detection676-9

product backlighting source suitable for object contour detection and size detection676-10

product backlighting source suitable for object contour detection and size detection676-11

Specification

Product category	Technical characteristics	Application field	Flexible customization
Bottom backlight	High brightness lighting to highlight the shape of the object being detected Suitable for defect detection on contour features or translucent objects Multi-color combination can meet different detection requirements	Dimension measurement of mechanical parts Electronic components, IC shape detection Scratch detection of transparent objects	Color, size, brightness Light source combination Installation mode
Side backlight	Multilateral light, excellent overall uniformity Ultra-thin design, can meet different installation space requirements Size free customization, can achieve a larger area of uniform lighting	Electronic component identification and inspection Garment textile, food packaging testing Printing quality detection, light box lighting	Color, size Number of LED rows Light Source Combination
Side center hole backlight	Instead of shadowless light Achieve large format uniform lighting The side backlight can be used as the front light source	Large area circuit board components detection and identification Large-area electronic component character recognition The Mark is positioned	Size and number of openings Color, size Installation Mode
Parallel backlight	High precision, large area product size measurement Thin product thickness, easy installation, space saving Large luminous surface	Large-area circuit board components detection and identification Perspective measurement LCD bad spot detection	Color, size Installation Mode Heat Dissipation Mode
Highlight the backlight	Achieve large format bright and uniform lighting Ultra-thin design, can meet different installation space requirements Size can be customized	High speed, short exposure profile measurement Dimension measurement of mechanical parts Scratches detection on the surface of transparent objects	Color, size Installation Mode Heat Dissipation Mode

Model Specification Parameter				Technical characteristics	Application field	Flexible customization

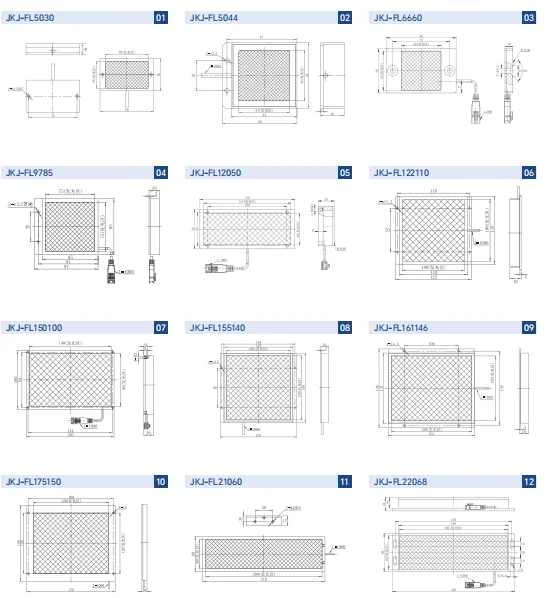

FL Series(Note: only some models below)				High brightness lighting to highlight the shape of the object being detected Suitable for defect detection on contour features or translucent objects Multi-color combination can meet different detection requirements	Dimension measurement of mechanical parts Electronic components, IC shape detection Scratch detection of transparent objects	Color, size, brightness Light source combination Installation mode
model number	Colors R / G / B / W	length (mm)	width (mm)	voltage
JKJ-FL5030-R/G/B/W	Red, green, blue and white	50	30	24V
JKJ-FL5044-R/G/B/W	Red, green, blue and white	50	44	24V
JKJ-FL6660-R/G/B/W	Red, green, blue and white	66	60	24V
JKJ-FL9785-R/G/B/W	Red, green, blue and white	97	85	24V
JKJ-FL12050-R/G/B/W	Red, green, blue and white	120	50	24V
JKJ-FL122110-R/G/B/W	Red, green, blue and white	122	110	24V
JKJ-FL150100-R/G/B/W	Red, green, blue and white	150	100	24V
JKJ-FL155140-R/G/B/W	Red, green, blue and white	155	240	24V
JKJ-FL161146-R/G/B/W	Red, green, blue and white	161	146	24V
JKJ-FL175150-R/G/B/W	Red, green, blue and white	175	150	24V
JKJ-FL21060-R/G/B/W	Red, green, blue and white	210	60	24V
JKJ-FL22068-R/G/B/W	Red, green, blue and white	220	68	24V

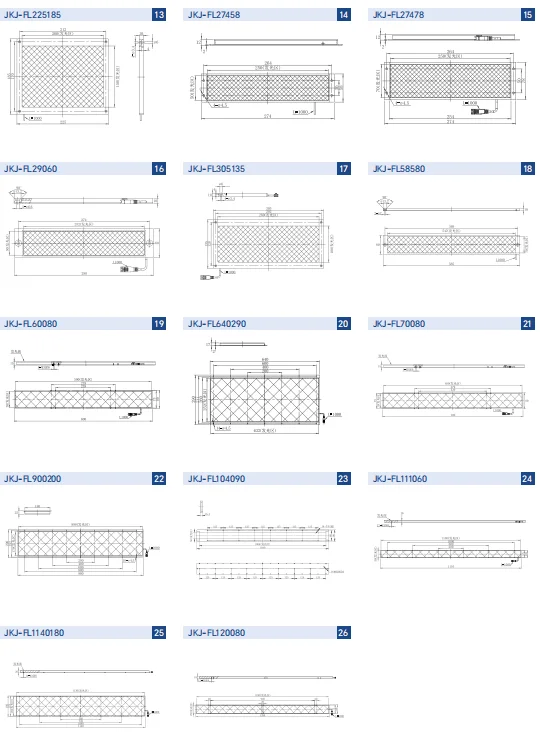

JKJ-FL225185-R/G/B/W	Red, green, blue and white	225	185	24V
JKJ-FL27458-R/G/B/W	Red, green, blue and white	274	58	24V
JKJ-FL27478-R/G/B/W	Red, green, blue and white	274	78	24V
JKJ-FL29060-R/G/B/W	Red, green, blue and white	290	60	24V
JKJ-FL305135-R/G/B/W	Red, green, blue and white	305	135	24V
JKJ-FL58580-R/G/B/W	Red, green, blue and white	585	80	24V
JKJ-FL60080-R/G/B/W	Red, green, blue and white	600	80	24V
JKJ-FL640290-R/G/B/W	Red, green, blue and white	640	290	24V
JKJ-FL70080-R/G/B/W	Red, green, blue and white	700	80	24V
JKJ-FL900200-R/G/B/W	Red, green, blue and white	900	200	24V
JKJ-FL104090-R/G/B/W	Red, green, blue and white	1040	90	24V
JKJ-FL111060-R/G/B/W	Red, green, blue and white	1100	60	24V
JKJ-FL1140180-R/G/B/W	Red, green, blue and white	1140	180	24V
JKJ-FL120080-R/G/B/W	Red, green, blue and white	1200	80	24V

Model Specification Parameter				Technical characteristics	Application field	Flexible customization
FL Series(Note: only some models below)				High brightness lighting to highlight the shape of the object being detected Suitable for defect detection on contour features or translucent objects Multi-color combination can meet different detection requirements	Dimension measurement of mechanical parts Electronic components, IC shape detection Scratch detection of transparent objects	Color, size, brightness Light source combination Installation mode
model number	Colors R / G / B / W	length (mm)	width (mm)	voltage

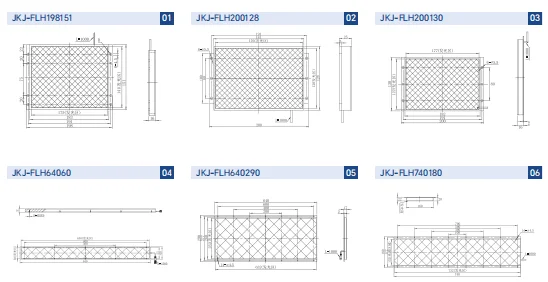

JKJ-FLH198151-R/G/B/W	Red, green, blue and white	198	151	24V
JKJ-FLH200128-R/G/B/W	Red, green, blue and white	200	128	24V
JKJ-FLH200130-R/G/B/W	Red, green, blue and white	200	130	24V
JKJ-FLH64060-R/G/B/W	Red, green, blue and white	640	60	24V
JKJ-FLH640290-R/G/B/W	Red, green, blue and white	640	290	24V
JKJ-FLH740180-R/G/B/W	Red, green, blue and white	740	180	24V

Model Specification Parameter				Technical characteristics	Application field	Flexible customization

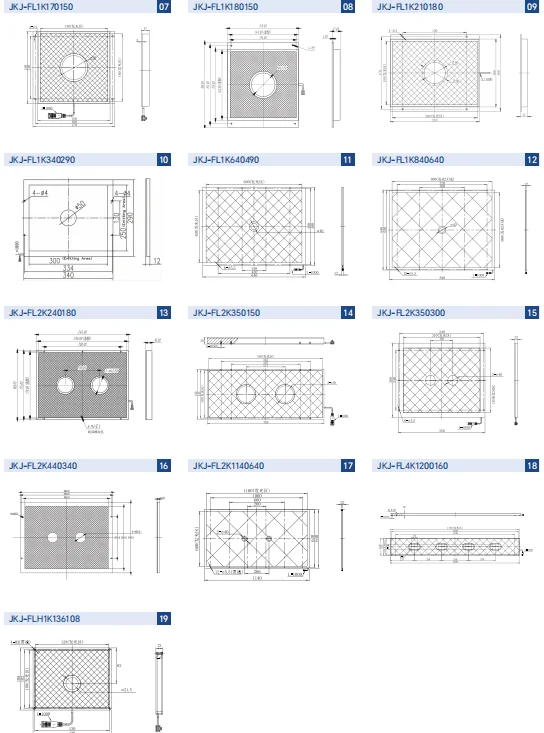

FLK/FLHK Series(Note: only some models below)				High brightness lighting to highlight the shape of the object being detected Suitable for defect detection on contour features or translucent objects Multi-color combination can meet different detection requirements	Dimension measurement of mechanical parts Electronic components, IC shape detection Scratch detection of transparent objects	Color, size, brightness Light source combination Installation mode
model number	Colors R / G / B / W	length (mm)	width (mm)	Middle opening diameter	Number of openings	voltage
JKJ-FL1K100100-R/G/B/W	Red, green, blue and white	100mm	100mm	40mm	1	24V
JKJ-FL1K118108-R/G/B/W	Red, green, blue and white	118mm	108mm	21.5mm	1	24V
JKJ-FL1K120120-R/G/B/W	Red, green, blue and white	120mm	120mm	40mm	1	24V
JKJ-FL1K122110-R/G/B/W	Red, green, blue and white	122mm	110mm	40mm	1	24V
JKJ-FL1K130130-R/G/B/W	Red, green, blue and white	130mm	130mm	40mm	1	24V
JKJ-FL1K145115-R/G/B/W	Red, green, blue and white	145mm	115mm	45mm	1	24V
JKJ-FL1K170150-R/G/B/W	Red, green, blue and white	170mm	150mm	50mm	1	24V
JKJ-FL1K180150-R/G/B/W	Red, green, blue and white	180mm	150mm	50mm	1	24V
JKJ-FL1K210180-R/G/B/W	Red, green, blue and white	210mm	180mm	50mm	1	24V
JKJ-FL1K340290-R/G/B/W	Red, green, blue and white	340mm	290mm	50mm	1	24V
JKJ-FL1K640490-R/G/B/W	Red, green, blue and white	640mm	490mm	40mm	1	24V
JKJ-FL1K840640-R/G/B/W	Red, green, blue and white	840mm	640mm	40mm	1	24V
JKJ-FL2K240180-R/G/B/W	Red, green, blue and white	240mm	180mm	40mm	2	24V
JKJ-FL2K350150-R/G/B/W	Red, green, blue and white	350mm	150mm	50mm	2	24V
JKJ-FL2K350300-R/G/B/W	Red, green, blue and white	350mm	300mm	40mm	2	24V
JKJ-FL2K440340-R/G/B/W	Red, green, blue and white	440mm	300mm	50mm	2	24V
JKJ-FL2K1140640-R/G/B/W	Red, green, blue and white	1140mm	640mm	40mm	2	24V
JKJ-FL4K1200160-R/G/B/W	Red, green, blue and white	1200mm	140mm	50mm	4	24V
JKJ-FLH1K136108-R/G/B/W	Red, green, blue and white	136mm	108mm	21.5mm	1	24V
