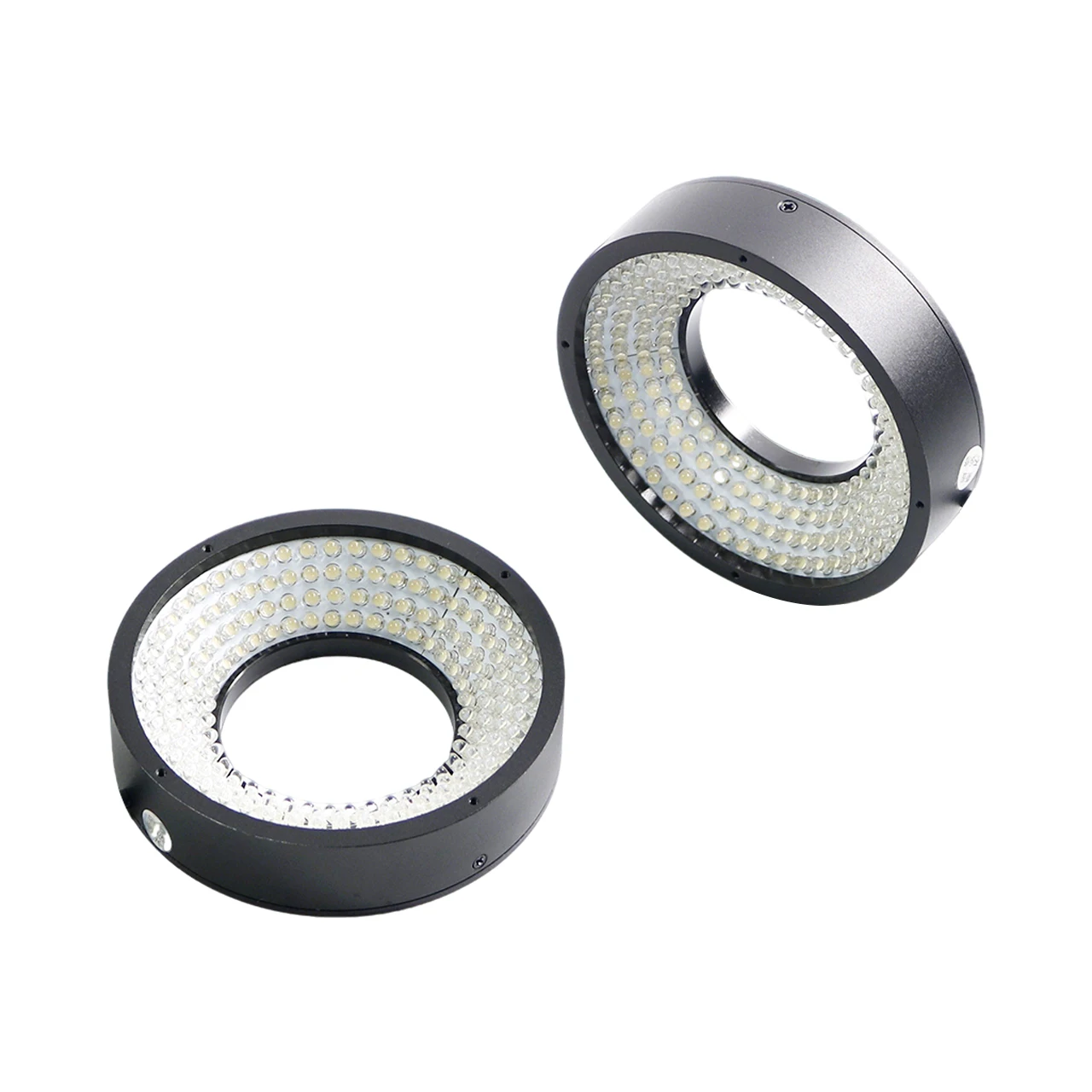

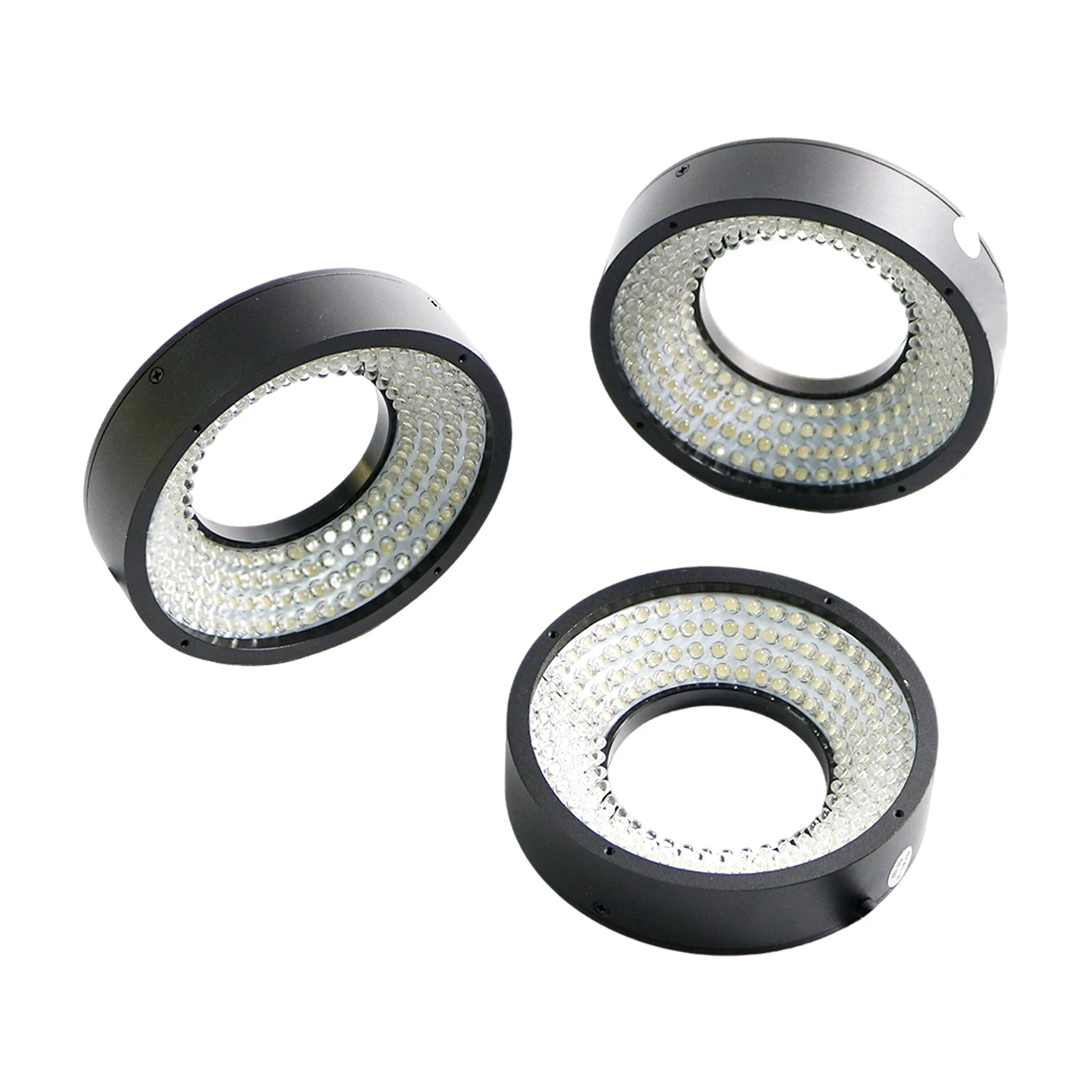

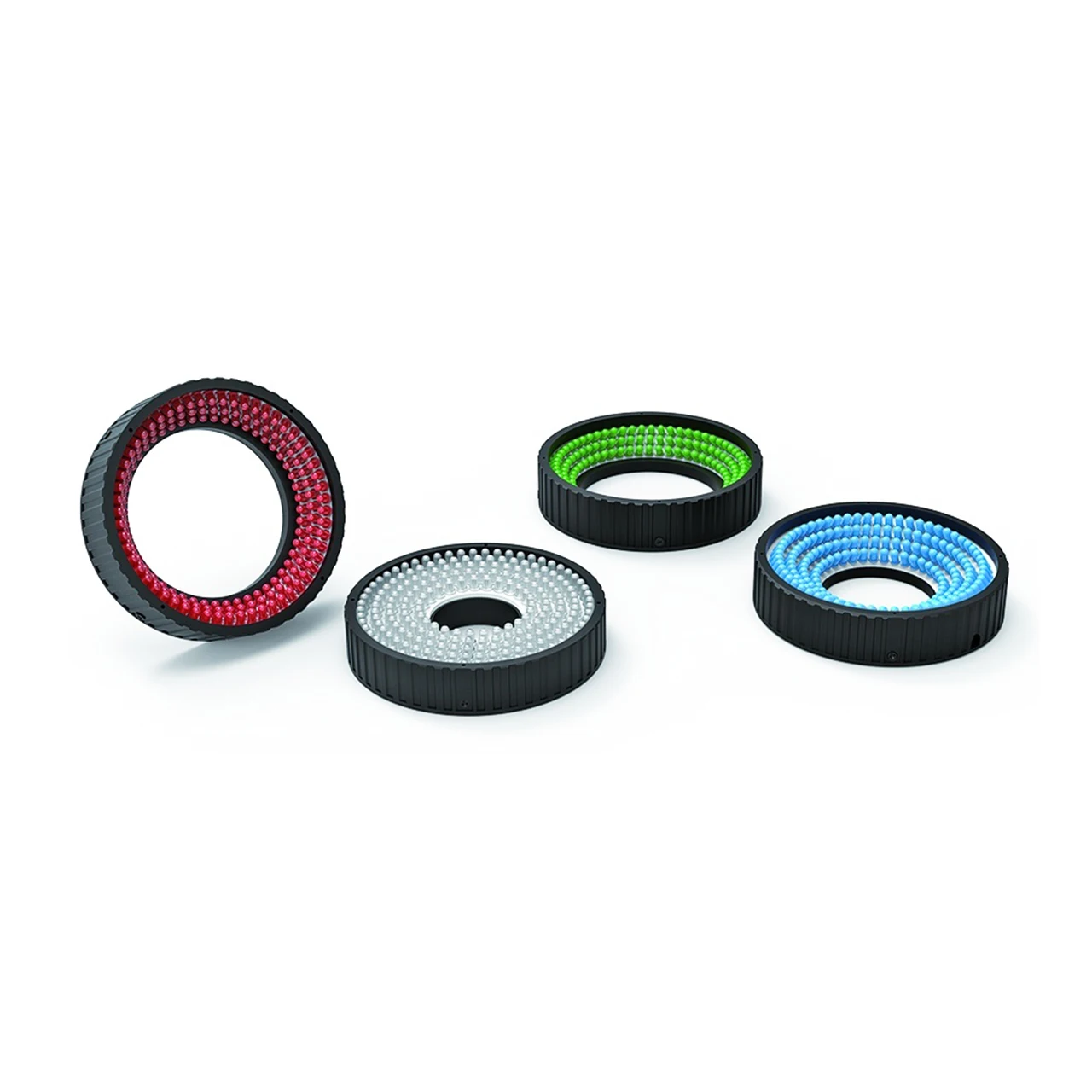

Blue Ring Light Source for Industrial Vision - 70mm OD, 30mm ID, 30° Angle HM-RL7030KC/FBL-B24

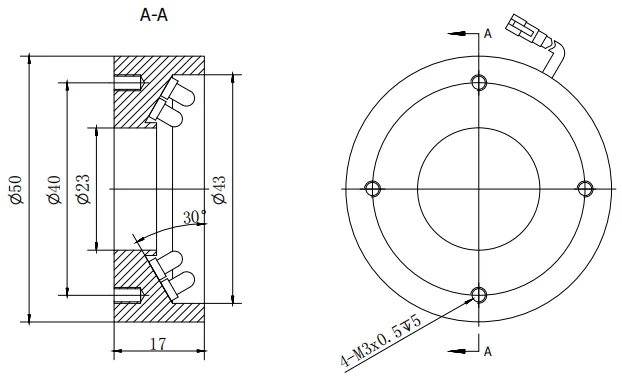

Specification parameters

Product name

Annular  light source

Product model

HM-RL7030KC-W24

outer diameter

70

inner diameter

30

angle

30°

Voltage

24V

Product Presentation

By changing the optical path to achieve high-angle and low-angle illumination, the surface texture and wrinkles of the object are effectively weakened, achieving a uniform image effect.

The shadowless light source, through the combination of multiple light sources, makes the light in the illuminated area more uniform, thereby reducing or eliminating shadows, and is suitable for various detection requirements.

Product Feature

Product category

Technical characteristics

Application field

Flexible customization

Planar shadowless light source

Scattered luminescence with good uniformity Lightweight, compact, easy to install and space-saving It saves installation space,
with a thin light source and small volume

Inspection of food, tobacco and daily chemical packaging Inspection and measurement of electrical enclosures and parts High
reflectivity, characters on uneven surfaces Graphic detection, measurement and recognition, etc

Color, size Installation method Heat dissipation method"

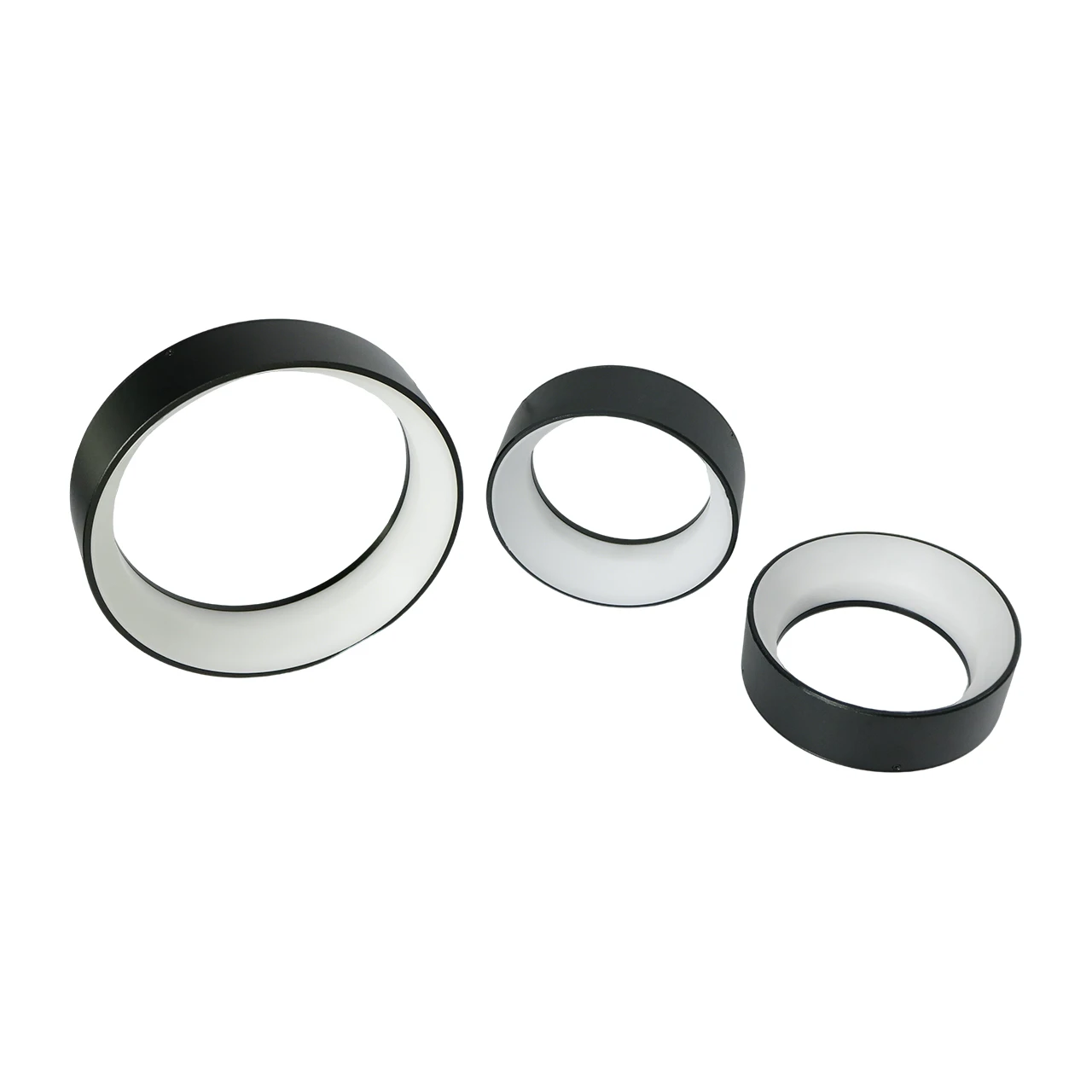

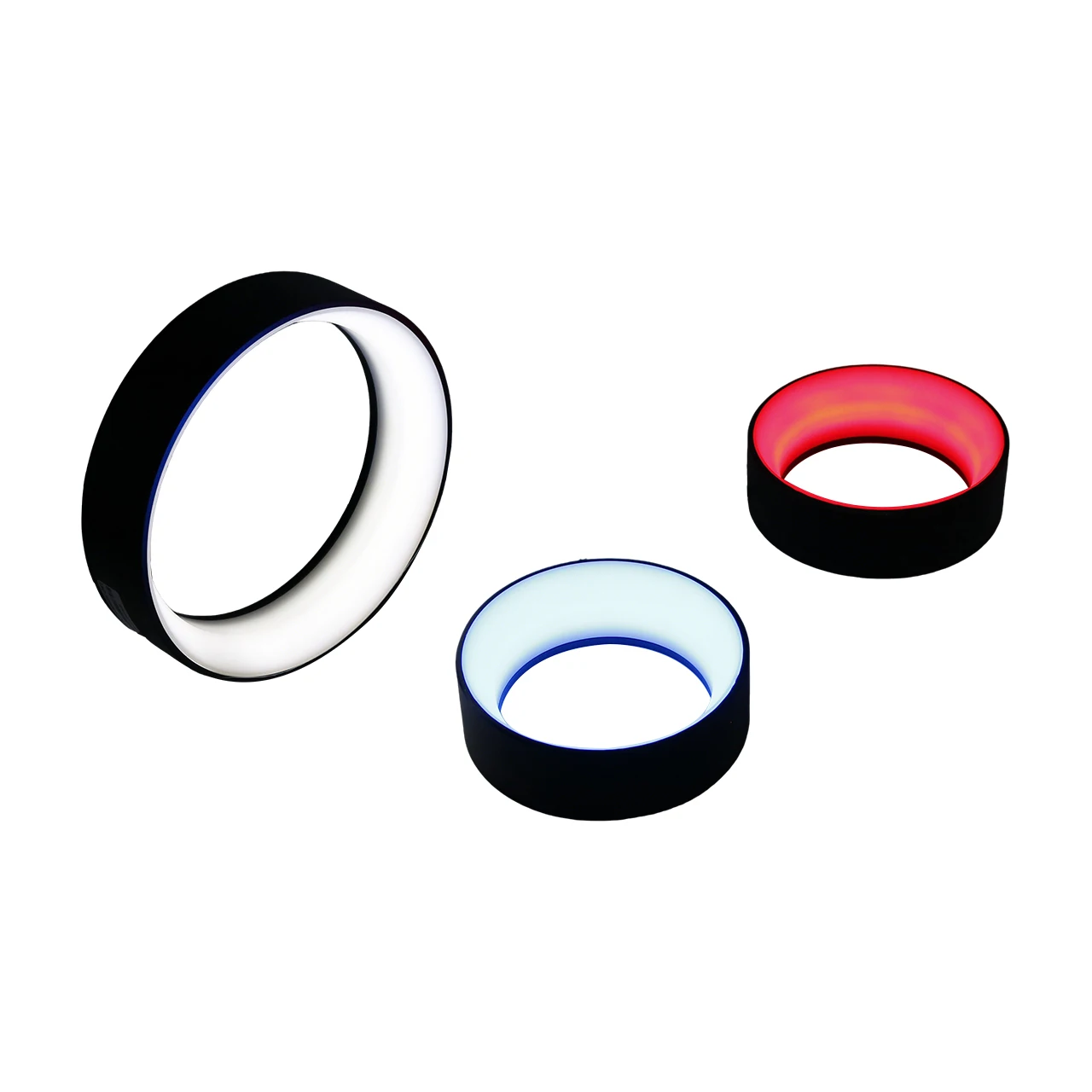

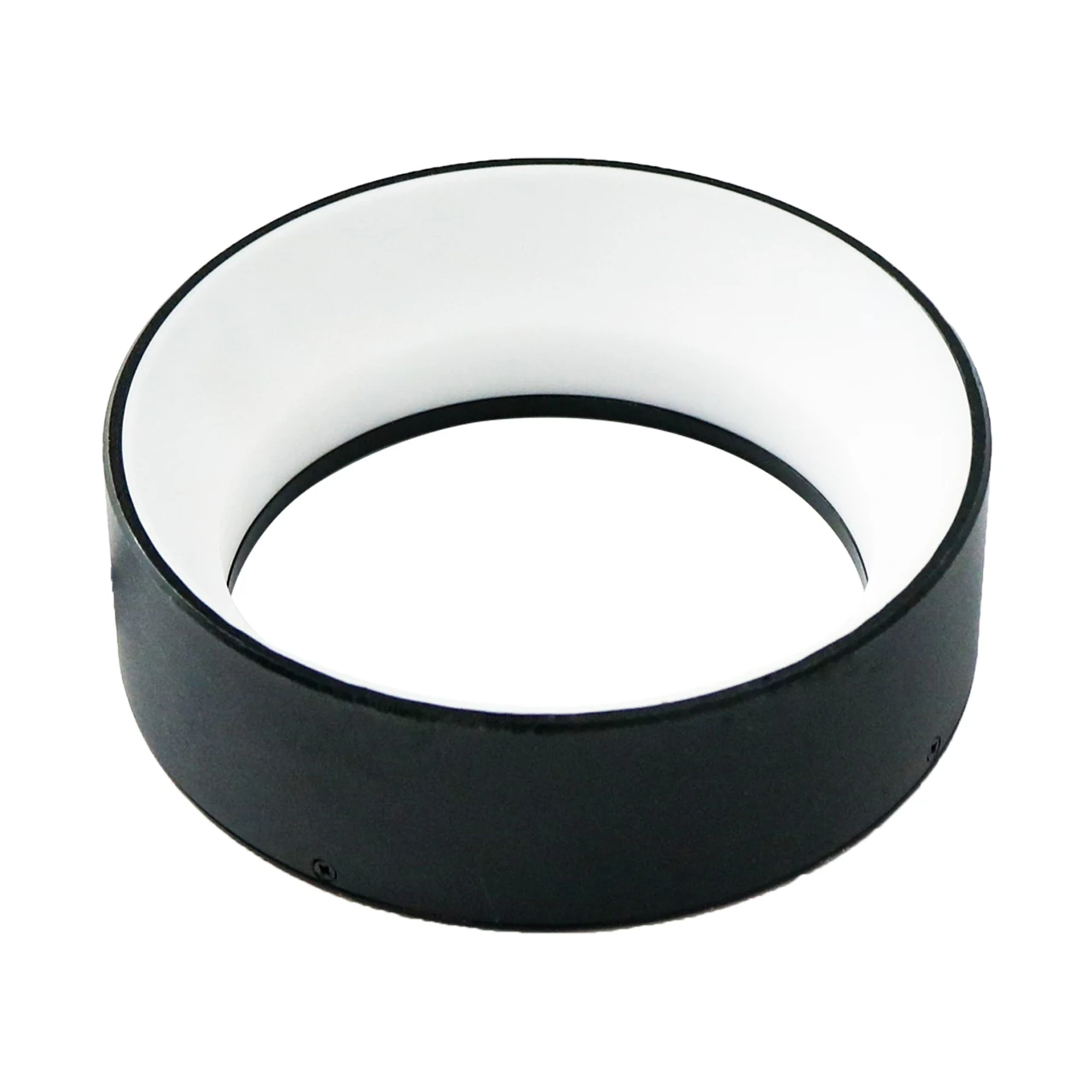

Arched shadowless light source

Good uniformity and high brightness It is often applied to the surfaces of the objects under test that need to be balanced In
situations where high brightness is required and reflection or flares should be avoided

PCB substrate inspection Packaging bag inspection Plastic surface inspection

Color, size, brightness Light source combination Installation method
