Coaxial Light Sources High Density LED Array Brightness Greatly Improved LED Light Xray Inspection Machine Visual Inspection

Introducing, the Jakange’s Coaxial Light Source, a cutting-edge LED array designed to revolutionize x-ray and visual inspections. This innovative light source boasts a high density of LEDs, offering unparalleled brightness and clarity for enhanced inspection results.

With the Jakange’s Coaxial Light Source, users can expect a significant improvement in the brightness and quality of their inspection processes. The high density LED array provides uniform illumination, ensuring every detail is clearly illuminated for thorough and accurate inspections.

Ideal for use in x-ray inspection machines and visual inspection applications, the Jakange’s Coaxial Light Source is a must-have tool for professionals in industries such as manufacturing, automotive, aerospace, and more. Its advanced technology ensures precise illumination of objects under inspection, allowing users to detect even the smallest defects and imperfections.

The Jakange’s Coaxial Light Source is easy to install and compatible with a wide range of inspection equipment, making it a versatile and cost-effective solution for businesses of all sizes. Its durable construction and long-lasting LED bulbs ensure reliable performance for years to come, saving users time and money on frequent replacements.

In addition to its exceptional brightness and durability, the Jakange’s Coaxial Light Source is also energy-efficient, helping users reduce their carbon footprint and operating costs. Its low power consumption and long lifespan make it a sustainable choice for environmentally-conscious businesses.

Upgrade your inspection processes with the Jakange’s Coaxial Light Source and experience a new level of clarity and precision in your work. Say goodbye to dim and inconsistent lighting and say hello to bright, uniform illumination that enhances your ability to spot defects and anomalies quickly and easily.

Invest in the Jakange’s Coaxial Light Source today and see the difference it can make in your x-ray and visual inspections. With its high density LED array, improved brightness, and long-lasting performance, this innovative light source is sure to become an essential tool in your inspection toolkit

Product Description

Specification

Product Feature
High density LED array, brightness greatly improved
Independent cooling mechanism, improve the stability of the light source, extend the service life

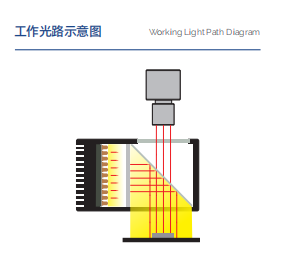

Spectroscope with special coating, reduce light loss, imaging clear
It can suppress the reflection of the semi-mirror and eliminate the double shadow in the image

Application Area
Highly reflective surface scratches, defects and other detection
Breakage detection of chips and silicon wafers
Laser marking characters, two-dimensional code recognition
Printed circuit board various characters, patterns
Bar code recognition
Mark point positioning, object edge Edge orientation

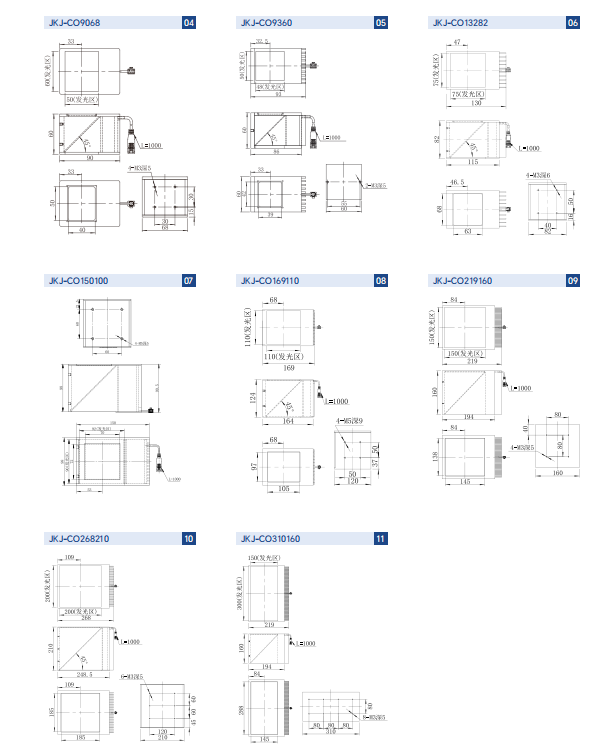

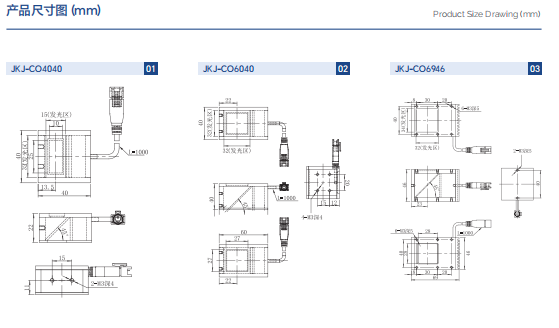

Model Specification Parameter - Note: Only some models are listed below
Model number	Colors R G// B / W	Length - mm	Width - mm	Voltage
JKJ-CO4040-R/G/B/W	Red, green, blue and white	40	40	24V
JKJ-CO6040-R/G/B/W	Red, green, blue and white	60	40	24V
JKJ-CO6946-R/G/B/W	Red, green, blue and white	60	46	24V
JKJ-CO9068-R/G/B/W	Red, green, blue and white	90	68	24V
JKJ-CO9360-R/G/B/W	Red, green, blue and white	93	60	24V
JKJ-CO13282-R/G/B/W	Red, green, blue and white	132	82	24V
JKJ-CO150100-R/G/B/W	Red, green, blue and white	150	100	24V
JKJ-CO169110-R/G/B/W	Red, green, blue and white	160	110	24V
JKJ-CO219160-R/G/B/W	Red, green, blue and white	210	160	24V
JKJ-CO268210-R/G/B/W	Red, green, blue and white	268	210	24V
JKJ-CO310160-R/G/B/W	Red, green, blue and white	310	160	24V
