Product Feature |
||||||||
High density LED array, brightness greatly improved |
||||||||
Independent cooling mechanism, improve the stability of the light source, extend the service life |
||||||||
Spectroscope with special coating, reduce light loss, imaging clear |
||||||||
It can suppress the reflection of the semi-mirror and eliminate the double shadow in the image |
||||||||
Application Area |
||||||||
Highly reflective surface scratches, defects and other detection |
||||||||
Breakage detection of chips and silicon wafers |
||||||||
Laser marking characters, two-dimensional code recognition |
||||||||
Printed circuit board various characters, patterns |
||||||||
Bar code recognition |
||||||||
Mark point positioning, object edge Edge orientation |
||||||||

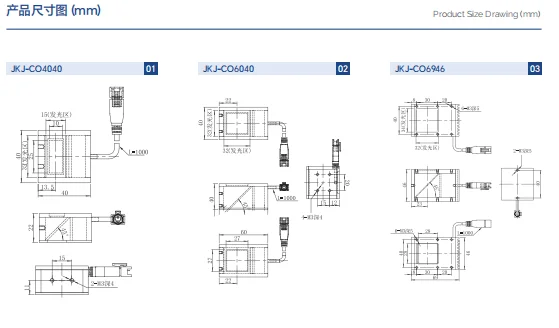

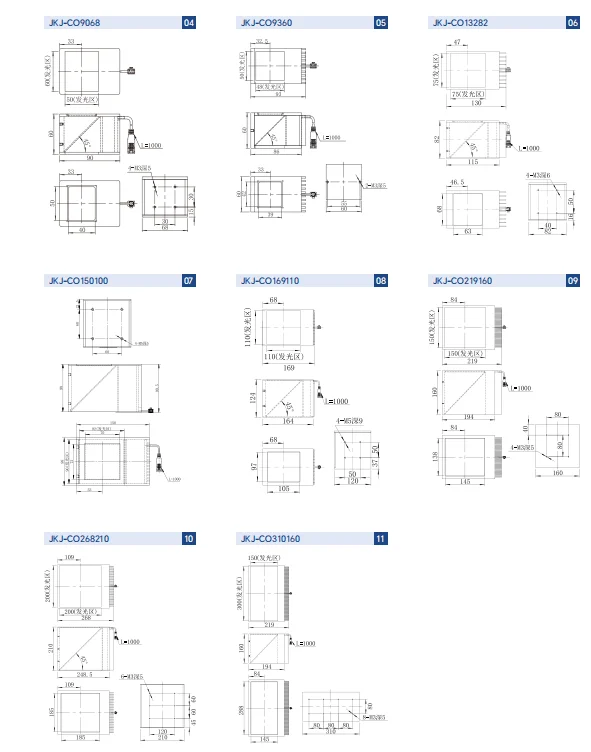

Model Specification Parameter(Note * Only some models are listed below) |
||||||||
model numbe |
Colors R G// B / W |
Length (mm) |
Width (mm) |
Voltage |
||||
JKJ-CO4040-R/G/B/W |
Red, green,blue and white |
40 |
40 |
24V |
||||
JKJ-CO6040-R/G/B/W |
Red, green,blue and white |
60 |
40 |
24V |
||||
JKJ-CO6946-R/G/B/W |
Red, green,blue and white |
60 |
46 |
24V |
||||
JKJ-CO9068-R/G/B/W |
Red, green,blue and white |
90 |
68 |
24V |
||||
JKJ-CO9360-R/G/B/W |
Red, green,blue and white |
93 |
60 |
24V |
||||
JKJ-CO13282-R/G/B/W |
Red, green,blue and white |
132 |
82 |
24V |
||||
JKJ-CO150100-R/G/B/W |
Red, green,blue and white |
150 |
100 |
24V |
||||
JKJ-CO169110-R/G/B/W |
Red, green,blue and white |
160 |
110 |
24V |
||||
JKJ-CO219160-R/G/B/W |
Red, green,blue and white |
210 |
160 |
24V |
||||
JKJ-CO268210-R/G/B/W |
Red, green,blue and white |
268 |
210 |
24V |
||||
JKJ-CO310160-R/G/B/W |
Red, green,blue and white |
310 |
160 |
24V |
||||
