Form factor |

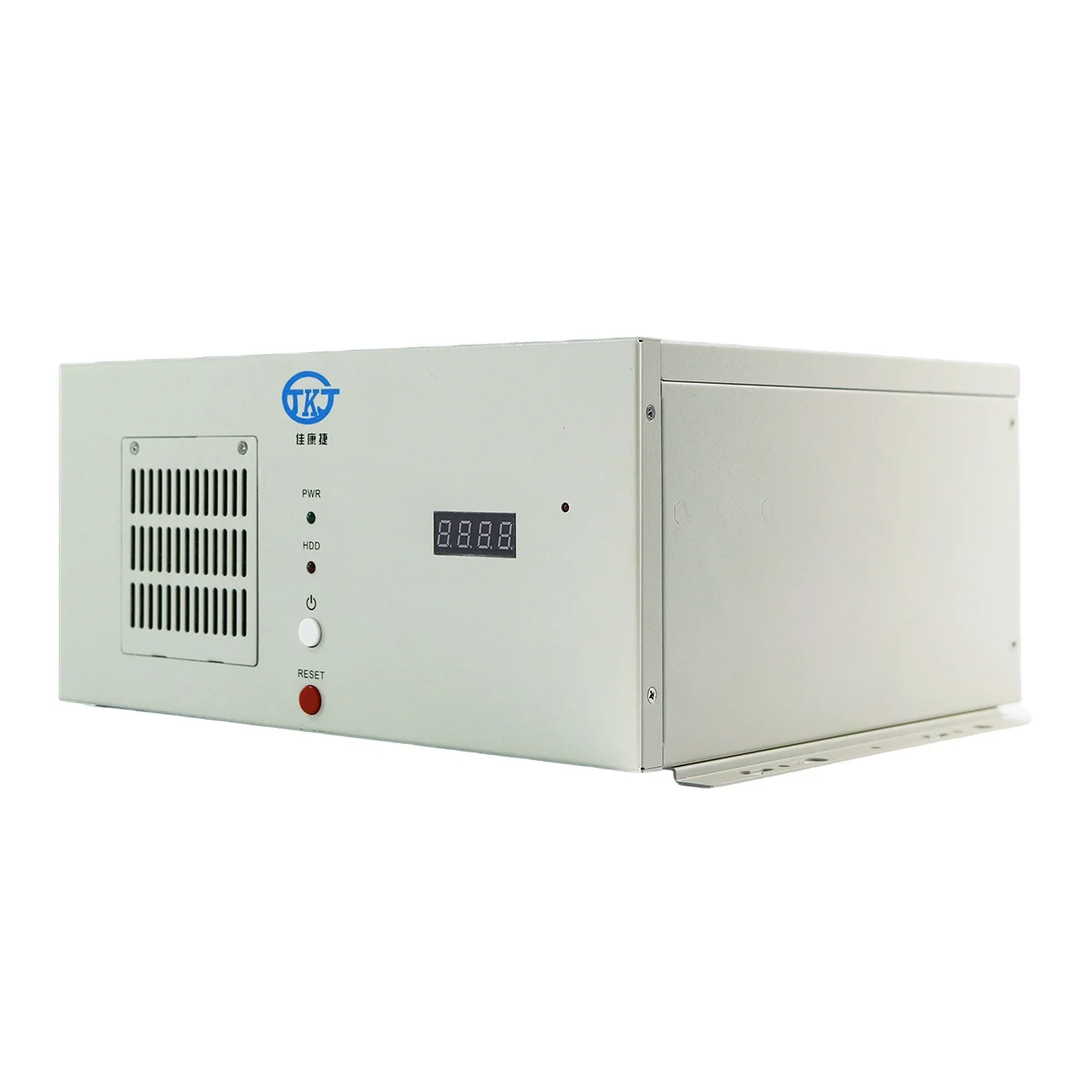

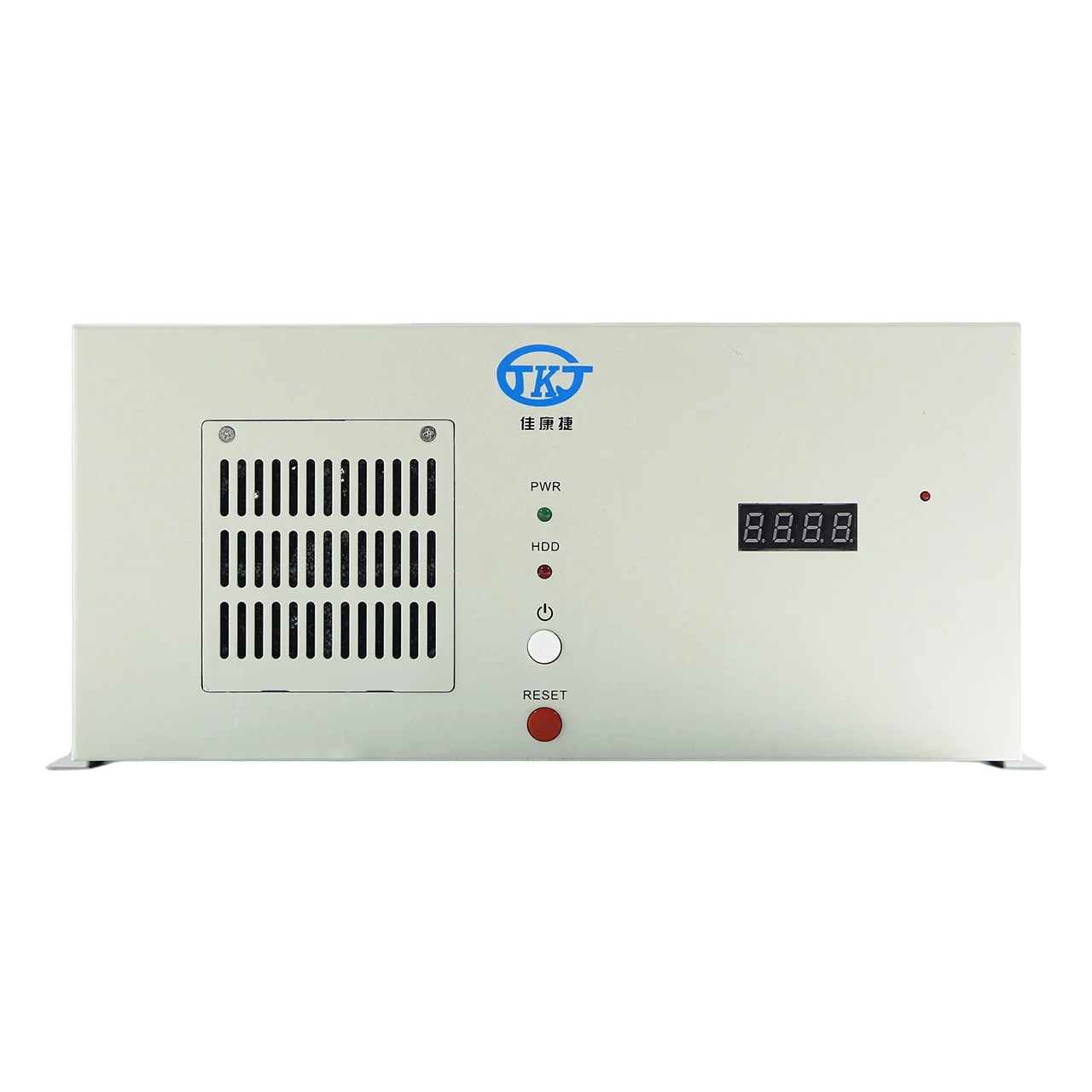

IMMV series Wall-mounted industrial control computers WXN9-3U-W480&Q470 (Including CPU, memory and the entire machine) |
||||
PROD_NAME |
IMMV-WXN9-3U-Q470-4G-C1 |
IMMV-WXN9-3U-Q470-8G-C2 |
IMMV-WXN9-3U-Q470-16G-C3 |
||
power |
350W |
350w |
350w |
||
Main board |
ATX Intel Q470 |
ATX Intel Q470 |
ATX Intel Q470 |
||
I3-6100processor
|
I3-6100cpu |
15-6600cpu |
I7-6700cpu |
||
Running memory |
4GDDR4 |
8GBDDR4 |
16G DDR4 |
||
store |
1TB / 2TB / 4TB / 8TB HDD (Optional SSD) |
||||
String communication interface |
4 RS232 (2 of which can be set to RS422/485) |
Power source |
ac100 - 240 v 50/60Hz |
||
Display interface |
VGA / dvi / hdmi / dp |
Operating system |
Genuine Win10 64-bit operating system |
||
Audio interface |
Line OUT / MIC / Line IN |
Heat dissipation mode |
Intelligent temperature control radiator |
||
Expansion slot |
2*PCIe x16,3*PCIe x4,2*PCI |
Adapt to the environment |
Operating temperature: -10~50° C Storage temperature: -20~60° C Humidity: 5~ 90% (no condensation) |
||
USB interface |
8*USB3.0,5*USB2.0 |
Size (mm) |
330 × 330 × 154 |
||
Traditional PCI expansion slot |
No extend |
Supports traditional ISA expansion slots |
Supports traditional ISA expansion slots |
||
