Line Scan Light High Uniformity, High Brightness Line Light Source, Suitable for All Kinds of High-speed Continuous Pipeline

Introducing, the Jakange’s Line Scan Light, a high-performance lighting solution designed for precision and efficiency. With its high uniformity and brightness, this line light source is perfect for a wide range of high-speed continuous pipeline applications.

The Jakange’s Line Scan Light is engineered to provide consistent and quality illumination across its entire length. This means that every part of your product or material will be evenly lit, ensuring accurate imaging and inspection results. Whether you are scanning products on a conveyor belt or inspecting materials on a production line, the Jakange’s Line Scan Light will deliver the brightness and uniformity needed for reliable performance.

This versatile lighting solution is suitable for a variety of high-speed continuous pipeline applications, making it a valuable addition to any industrial setting. From manufacturing and quality control to logistics and packaging, the Jakange’s Line Scan Light can enhance productivity and streamline operations. Its high brightness ensures clear visibility even in fast-paced environments, while its uniformity guarantees consistent results every time.

The Jakange’s Line Scan Light is easy to install and compatible with a wide range of systems and equipment. Its durable construction and long-lasting performance make it a cost-effective lighting solution for demanding applications. With its energy-efficient design, the Jakange’s Line Scan Light can help reduce operating costs and improve overall efficiency.

Trust Jakange for high-quality lighting solutions that meet the needs of your business. Invest in the Jakange’s Line Scan Light today and experience the benefits of high uniformity, high brightness, and reliable performance. Enhance your production processes and achieve superior results with this innovative line light source. Choose Jakange for exceptional quality and value in industrial lighting solutions

Product Description

Specification

Product Presentation

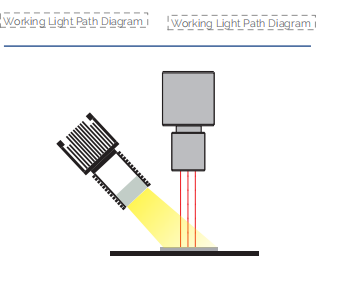

The line sweep light source works by rapidly moving the narrow light source so that the light is in scan on the object to be tested
This light source is usually a reflective design, and can be imaged by a mirror reduce the size of the light source and improve the imaging effect while reducing the power of the light source

Product Feature

Product category

Technical characteristics

Application field

Flexible customization

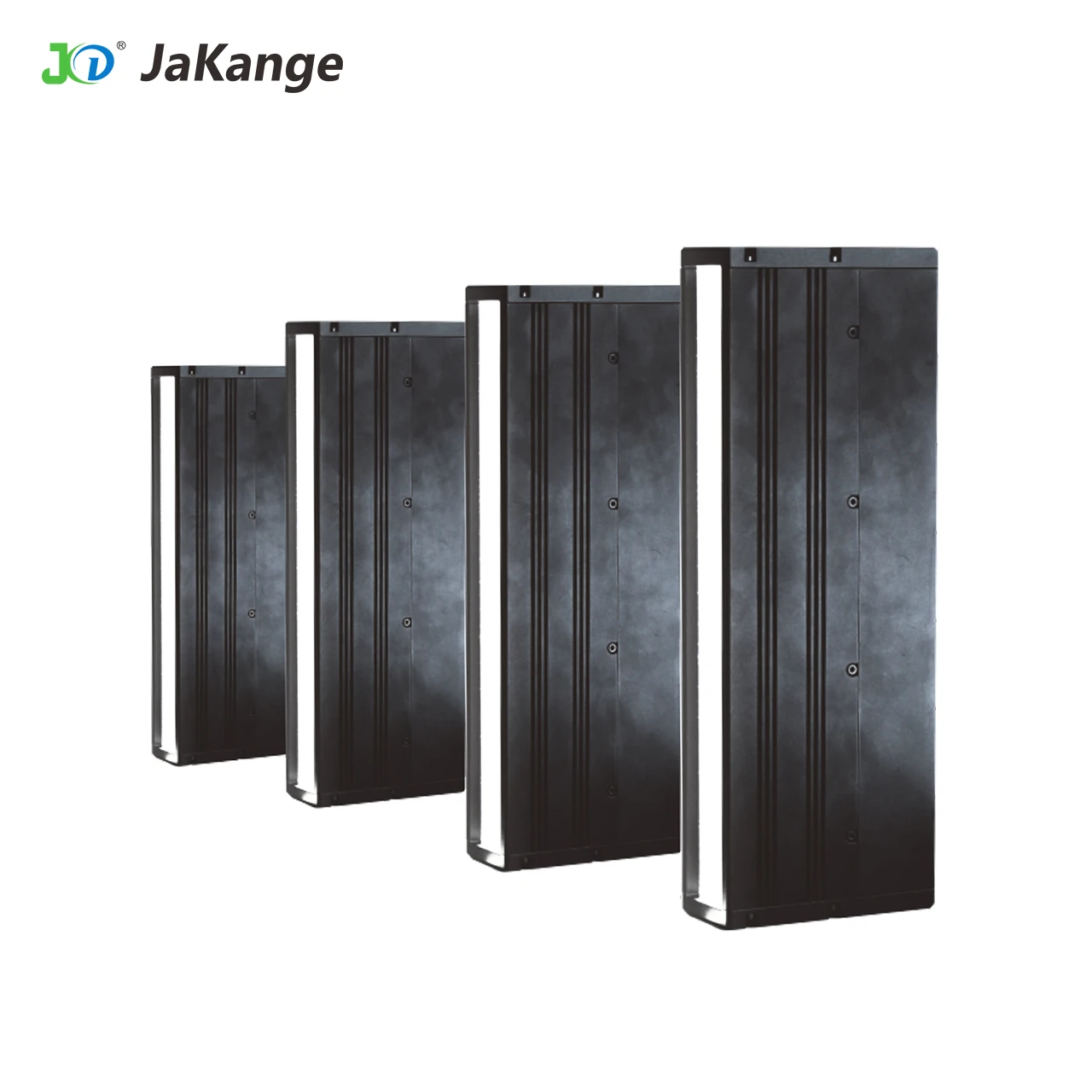

Line Scan Light

Long working distance line array preferred, customized according to different working distances  High power patch LED and unique light concentrating structure for high speed Line array item  The maximum brightness of the light source can reach more than 1.8million lux

Glass, aluminum foil, steel plate surface detection Ultra-high-speed online detection Remote high brightness detection High-speed printing quality detection

Color, size, brightness Installation Mode Heat Dissipation Mode

Tunnel lines sweep the light source

Compact structure, stable, durable, good uniformity, high brightness Often applied to the surface of the measured object needs to be balanced, with line array Camera use

PCB board printing detection Vacuum packaging bag detection Metal surface, glass surface gloss detection

Color, size Installation Mode Heat Dissipation Mode

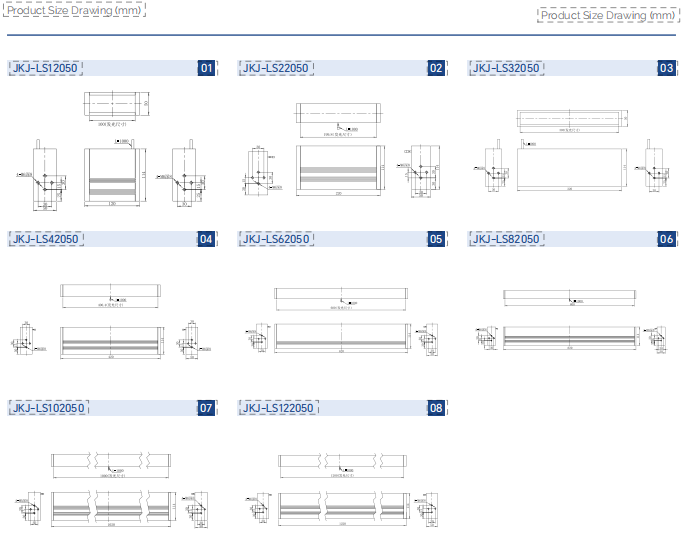

Model Specification Parameter - Note: Only some models are listed below
Model number	Colors R / B / W	Length - mm	Width  - mm	Height - mm	Voltage
JKJ-LS12050-R/G/B/W	Red,  blue and white	120	50	114	24V
JKJ-LS22050-R/G/B/W	Red, blue and white	220	50	114	24V
JKJ-LS32050-R/G/B/W	Red, blue and white	320	50	114	24V
JKJ-LS42050-R/G/B/W	Red, blue and white	420	50	114	24V
JKJ-LS62050-R/G/B/W	620Red, blue and white	620	50	114	24V
JKJ-LS82050-R/G/B/W	Red, blue and white	820	50	114	24V
JKJ-LS102050-R/G/B/W	Red, blue and white	1020	50	114	24V
JKJ-LS122050-R/G/B/W	Red, blue and white	1220	50	114	24V

Company Profile

FAQ

Jakange Technology has a wide range of research and development products, which are used in the optical industry, paper products, pharmaceuticals, photography and remote sensing, printing, railway transportation, monitoring, aerospace, shipbuilding, wireless communication, transportation, wood and semiconductor, automotive manufacturing, ceramics, chemical industry, electronic components and equipment, food industry, glass industry, life sciences, medicine, steel, mining, etc. It has an unparalleled advantage in large-scale manufacturing and logistics industries
