Product Presentation |
||||||||

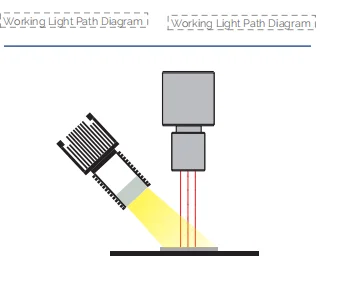

The line sweep light source works by rapidly moving the narrow light source so that the light is in Scan on the object to be tested. |
||||||||
This light source is usually a reflective design, and can be imaged by a mirror Reduce the size of the light source and improve the imaging effect while reducing the power of the light source. |
||||||||
Product Feature |
|||||||||||||
Product category |
Technical characteristics |
Application field |
Flexible customization |
||||||||||
Line Scan Light |
Long working distance line array preferred, customized according to different working distances High power patch LED and unique light concentrating structure for high speed Line array item
The maximum brightness of the light source can reach more than 1.8million lux
|
Glass, aluminum foil, steel plate surface detection Ultra-high-speed online detection
Remote high brightness detection
High-speed printing quality detection |
Color, size, brightness Installation Mode Heat Dissipation Mode
|
||||||||||
Tunnel lines sweep the light source |
Compact structure, stable, durable, good uniformity, high brightness Often applied to the surface of the measured object needs
to be balanced, with line array Camera use |
PCB board printing detection Vacuum packaging bag detection Metal surface, glass surface gloss detection
|
Color, size Installation Mode
Heat Dissipation Mode
|
||||||||||

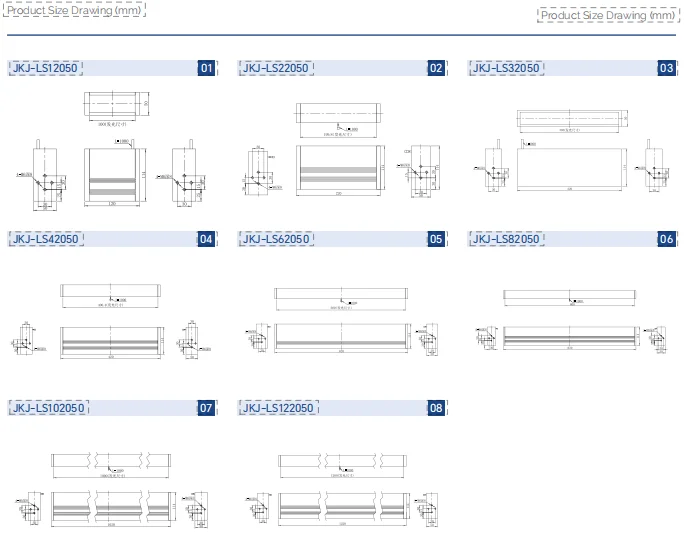

Model Specification Parameter(Note * Only some models are listed below) |
|||||||||
model numbe |
Colors R / B / W |
Length (mm) |
Width (mm) |
Height (mm) |
Voltage |
||||
JKJ-LS12050-R/G/B/W |
Red, blue and white |
120 |
50 |
114 |
24V |
||||
JKJ-LS22050-R/G/B/W |
Red, blue and white |
220 |
50 |
114 |
24V |
||||
JKJ-LS32050-R/G/B/W |
Red, blue and white |
320 |
50 |
114 |
24V |
||||
JKJ-LS42050-R/G/B/W |
Red, blue and white |
420 |
50 |
114 |
24V |
||||
JKJ-LS62050-R/G/B/W |
620Red, blue and white |
620 |
50 |
114 |
24V |
||||
JKJ-LS82050-R/G/B/W |
Red, blue and white |
820 |
50 |
114 |
24V |
||||
JKJ-LS102050-R/G/B/W |
Red, blue and white |
1020 |
50 |
114 |
24V |
||||
JKJ-LS122050-R/G/B/W |
Red, blue and white |
1220 |
50 |
114 |
24V |
||||
