Model Specification Parameter |
|||||||
Y5000 Series |
|||||||
Model number |
JKJ-Y5090-20 |
JKJ-Y5070-8 |
JKJ-Y5050-6 |
JKJ-Y5030-4 |
|||
CPU |
i7-9700 |
i7-3770 |
i5-3450 |
i3-3220 |
|||
Running memory |
16G / 32G / 64G / 128G |
8G / 16G / 32G |
|||||
store |
1TB / 2TB / 4TB / 8TB HDD (Optional SSD) |
||||||
Graphics processor |
Integrated display (built-in CPU), optional independent graphics card (G710 / GT730 / GT1030, etc.) |
||||||
Number of cameras available |
20 个 CCD |
8个 CCD |
6个 CCD |
4个 CCD |
|||
Light source control |
4 channels digital light source brightening module, support visual light source brightness control, maximum power support 120W |
||||||
IO |
Optional (Supports 8-channel isolated IO control) |
||||||
Serial communication port |
4 RS232 (2 of which can be set to RS422/485) |
||||||
Display interface |
VGA / DVI / HDMI / DP |
||||||
Audio interface |
Line OUT / MIC / Line IN |
||||||
Ethernet interface |
2 Gigabit Ethernet interfaces |
||||||
USB interface |
8 × USB3.0 / 2.0 |
||||||
PCIE expansion slot |
2×PCIe×16 / 3×PCIe×4 |
1×PCIe×16 / 1×PCIe×4 |
|||||
Traditional PCI expansion slot |
Support 2 |
||||||
dongle |
Built-in dongle interface |
||||||
Power source |
AC100-240V 50/60Hz |
||||||
Operating system |
Win10 / Linux |
Win7 / Win8 / Win10 / Linux |
|||||
Typical power consumption |
≤ 150W |
||||||
Heat dissipation mode |
Intelligent temperature control radiator |
||||||
Size (mm) |
330 × 330 × 154 |
||||||
Adapt to the environment |
Operating temperature: -10~50° C Storage temperature: -20~60° C Humidity: 5~ 90% (no condensation) |
||||||
Model Specification Parameter |
|||||||
Y6000Series |
|||||||
Model number |
JKJ-Y6090-20 |
JKJ-Y6070-8 |
JKJ-Y6050-6 |
JKJ-Y6030-4 |
|||
CPU |
i9-9900 |
i7-6700 / i7-7700 |
i5-6500 |
i3-6100 |
|||
Running memory |
16G / 32G / 64G / 128G |
8G / 16G / 32G |
|||||
store |
1TB / 2TB / 4TB / 8TB HDD (Optional SSD) |
||||||
Graphics processor |
Integrated display (built-in CPU), optional independent graphics card (G710 / GT730 / GT1030, etc.) |
||||||
Number of cameras available |
20 个 CCD |
8个 CCD |
6个 CCD |
4个 CCD |
|||
Light source control |
4 channels digital light source brightening module, support visual light source brightness control, maximum power support 120W |
||||||
IO |
Optional (Supports 8-channel isolated IO control) |
||||||
Serial communication port |
4 RS232 (2 of which can be set to RS422/485) |
||||||
Display interface |
VGA / DVI / HDMI / DP |
||||||
Audio interface |
Line OUT / MIC / Line IN |
||||||
Ethernet interface |
Three Gigabit Ethernet interfaces |
2 Gigabit Ethernet interfaces |
|||||
USB interface |
8 × USB3.0 / 2.0 |
||||||
PCIE expansion slot |
1×PCIe×16 / 4×PCIe×4 |
1×PCIe×16 / 1×PCIe×4 |
|||||
Traditional PCI expansion slot |
Support 2 |
||||||
dongle |
Optional (built-in dongle interface) |
||||||
Power source |
AC100-240V 50/60Hz |
||||||
Operating system |
Genuine Win10 64-bit operating system |
||||||
Typical power consumption |
≤ 150W |
||||||
Heat dissipation mode |
Intelligent temperature control radiator |
||||||

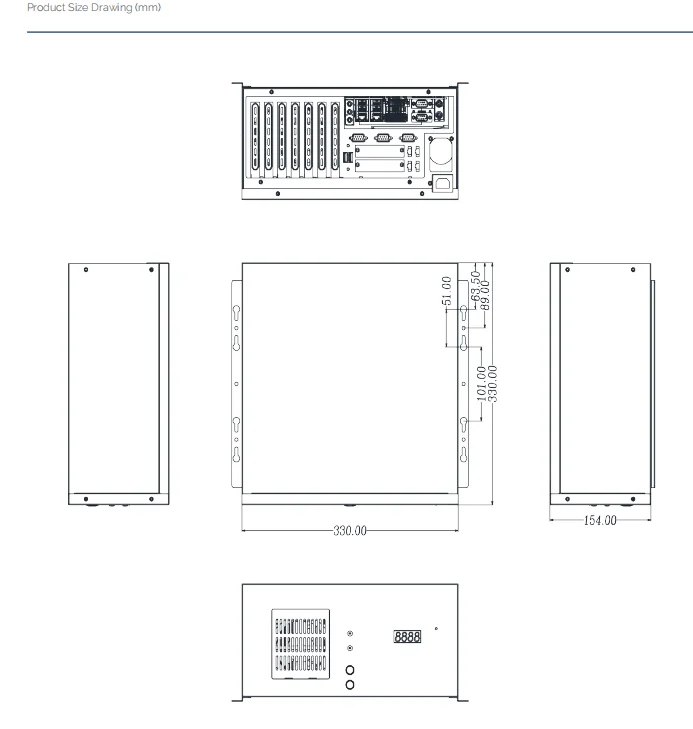

Size (mm) |
330 × 330 × 154 |
||||||
Adapt to the environment |
Operating temperature: -10~50° C Storage temperature: -20~60° C Humidity: 5~ 90% (no condensation) |
||||||
Product Feature |
High performance multi-core processor |
Supports simultaneous acquisition by multiple IP cameras |
Supports four light sources control |
Supports eight I/O controllers |
Provide rich visual control interface |
Integrated compact design saves installation space |
