Machine Vision Inspection of Standard 4U 19 Inch Overhead Industrial Computer Industrial Computers

Introducing, the Jakange’s Machine Vision Inspection system for Standard 4U 19 Inch Overhead Industrial Computers. This cutting-edge technology is designed to revolutionize the way you inspect and monitor industrial processes.

With the Jakange’s Machine Vision Inspection system, you can ensure the highest level of quality control and accuracy in your production line. The system is equipped with advanced sensors and cameras that are capable of detecting even the smallest defects or abnormalities in your products. This means you can catch potential issues early on, preventing costly mistakes and ensuring that only the highest quality products leave your facility.

One of the key features of the Jakange’s Machine Vision Inspection system is its ease of use. The system is designed to be user-friendly and intuitive, so you can set it up quickly and start inspecting your products right away. You can also customize the system to meet your specific needs, ensuring that it meets the unique requirements of your production line.

The Jakange’s Machine Vision Inspection system is also highly efficient, allowing you to inspect a large number of products in a short amount of time. This means you can increase your production output without sacrificing quality, giving you a competitive edge in the market.

In addition to its high performance and ease of use, the Jakange’s Machine Vision Inspection system is also built to last. The system is housed in a durable 4U 19 Inch Overhead Industrial Computer, which is designed to withstand the harsh conditions of an industrial environment. This means you can rely on the system to keep working efficiently for years to come, with minimal maintenance required.

The Jakange’s Machine Vision Inspection system is a must-have for any industrial facility that prioritizes quality control and efficiency. With its advanced technology, user-friendly design, and durable construction, this system will help you take your production line to the next level. Upgrade to the Jakange’s Machine Vision Inspection system today and experience the difference it can make in your operations

Product Description

Model Specification Parameter
Model number	JKJ-HIPC-6180-Q470	JKJ-HIPC-6180-H110
CPU	ntel Core 10th /11th i9/i7/i5/i3 Processor	Intel Core 6th /7th /8th /9th i9/i7/i5/i3 Processor
Running memory	8G-132G (capacity can be customized)	8G-32G - capacity can be customized
Store	250G SSD + 1TB HDD - Capacity can be customized
Graphics processor	Intel UHD Graphics
IO	Supports 8 programmable IO controls
String communication interface	4 RS232 - 2 of which can be set to RS422/485
Display interface	VGA / DVI / HDMI / DP
Audio interface	Line OUT / MIC / Line IN
Ethernet interface	Three Gigabit Ethernet interfaces	2 Gigabit Ethernet interfaces
USB interface	6 × USB3.0 2 × USB2.0	4 × USB3.0 4 × USB2.0
Expansion slot	Supports 2 traditional PCI extensions Supports two PCIe x 16 extensions (1 PCle x 16 or 2 PCle x 8) Supports 3 PCle x 4 extensions	Supports 5 traditional PCI extensions Supports two PCIe x 16 extensions - 1 PCIe x 16 or 2 PCIe x 8
dongle	Built-in 1 x USB port supports dongles
Power source	Specification 300W ATX AC100-240V 50/60Hz
other	Front security door, 2 x USB, switch button, reset button set in the door
colour	Available in white/black
Typical power consumption	≤ 150W - optional single display depends on the graphics card model
Operating system	Win7 / Win10 / Linux
Heat dissipation mode	Intelligent temperature control radiator

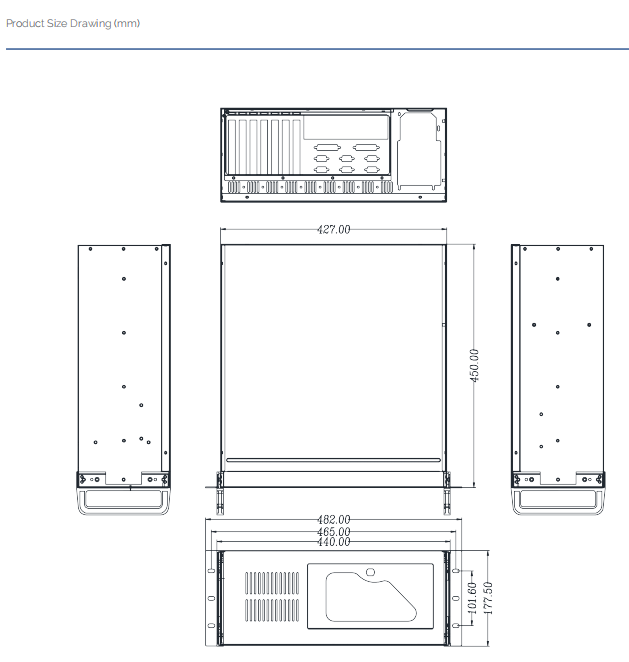

Size - mm	482 × 450 × 176
Adapt to the environment	Operating temperature: -10~50° C  Storage temperature: -20~60° C  Humidity: 5~ 90% - no condensation

Model Specification Parameter
Model number	JKJ-HIPC-6180-Q470	JKJ-HIPC-6180-H110
CPU	ntel Core 10th /11th i9/i7/i5/i3 Processor	Intel Core 6th /7th /8th /9th i9/i7/i5/i3 Processor
Running memory	8G-132G (capacity can be customized)	8G-32G - capacity can be customized
Store	250G SSD + 1TB HDD - Capacity can be customized
Graphics processor	Intel UHD Graphics
IO	Supports 8 programmable IO controls
String communication interface	4 RS232 - 2 of which can be set to RS422/485
Display interface	VGA / DVI / HDMI / DP
Audio interface	Line OUT / MIC / Line IN
Ethernet interface	Three Gigabit Ethernet interfaces	2 Gigabit Ethernet interfaces
USB interface	6 × USB3.0 2 × USB2.0	4 × USB3.0 4 × USB2.0
Expansion slot	Supports 2 traditional PCI extensions Supports two PCIe x 16 extensions (1 PCle x 16 or 2 PCle x 8) Supports 3 PCle x 4 extensions	Supports 5 traditional PCI extensions Supports two PCIe x 16 extensions - 1 PCIe x 16 or 2 PCIe x 8
dongle	Built-in 1 x USB port supports dongles
Power source	Specification 300W ATX AC100-240V 50/60Hz
Other	Front security door, 2 x USB, switch button, reset button set in the door
Colour	Available in white/black
Typical power consumption	≤ 150W - optional single display depends on the graphics card model
Operating system	Win7 / Win10 / Linux
Heat dissipation mode	Intelligent temperature control radiator
Size - mm	482 × 450 × 176
Adapt to the environment	Operating temperature: -10~50° C  Storage temperature: -20~60° C  Humidity: 5~ 90% - no condensation

Specification

Product Feature

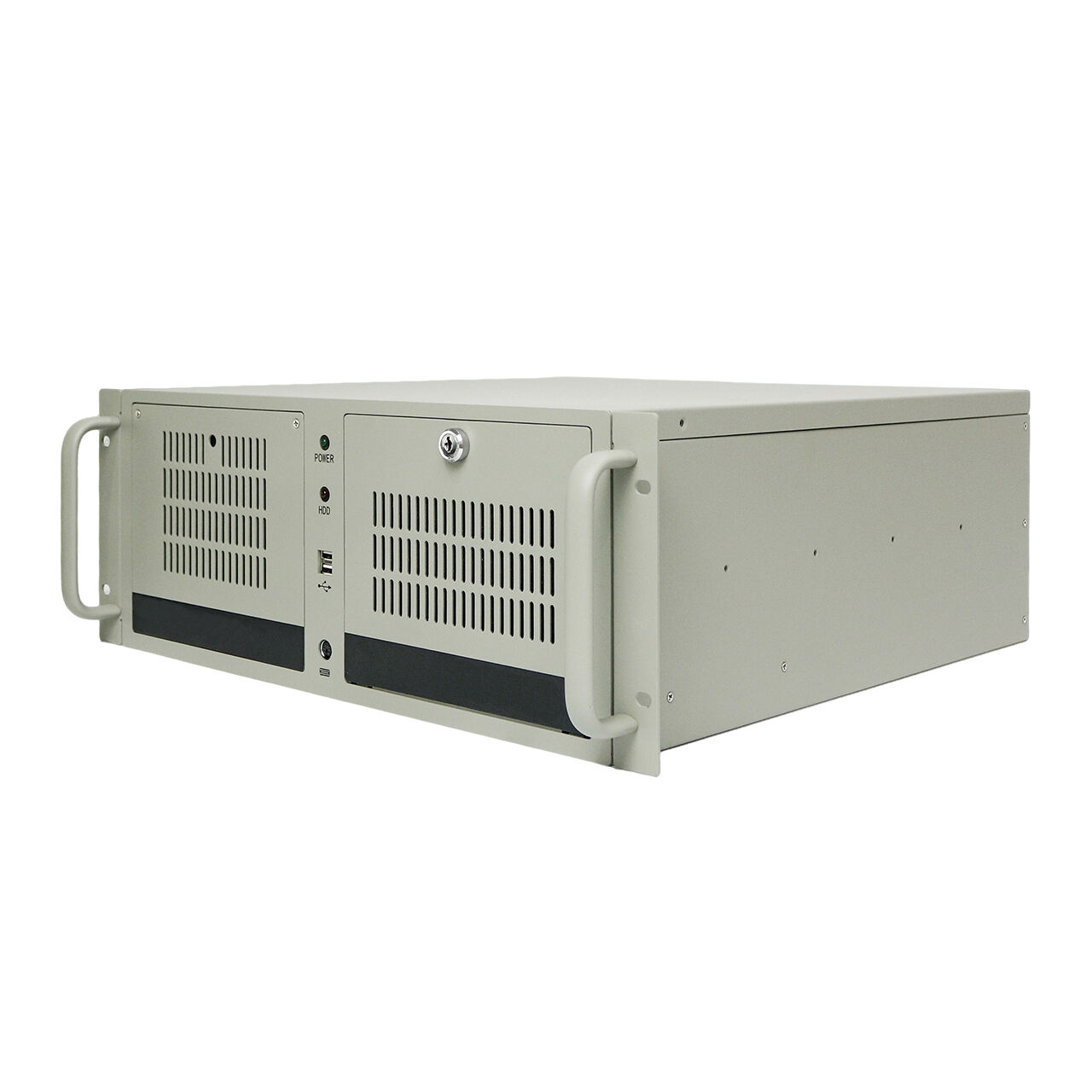

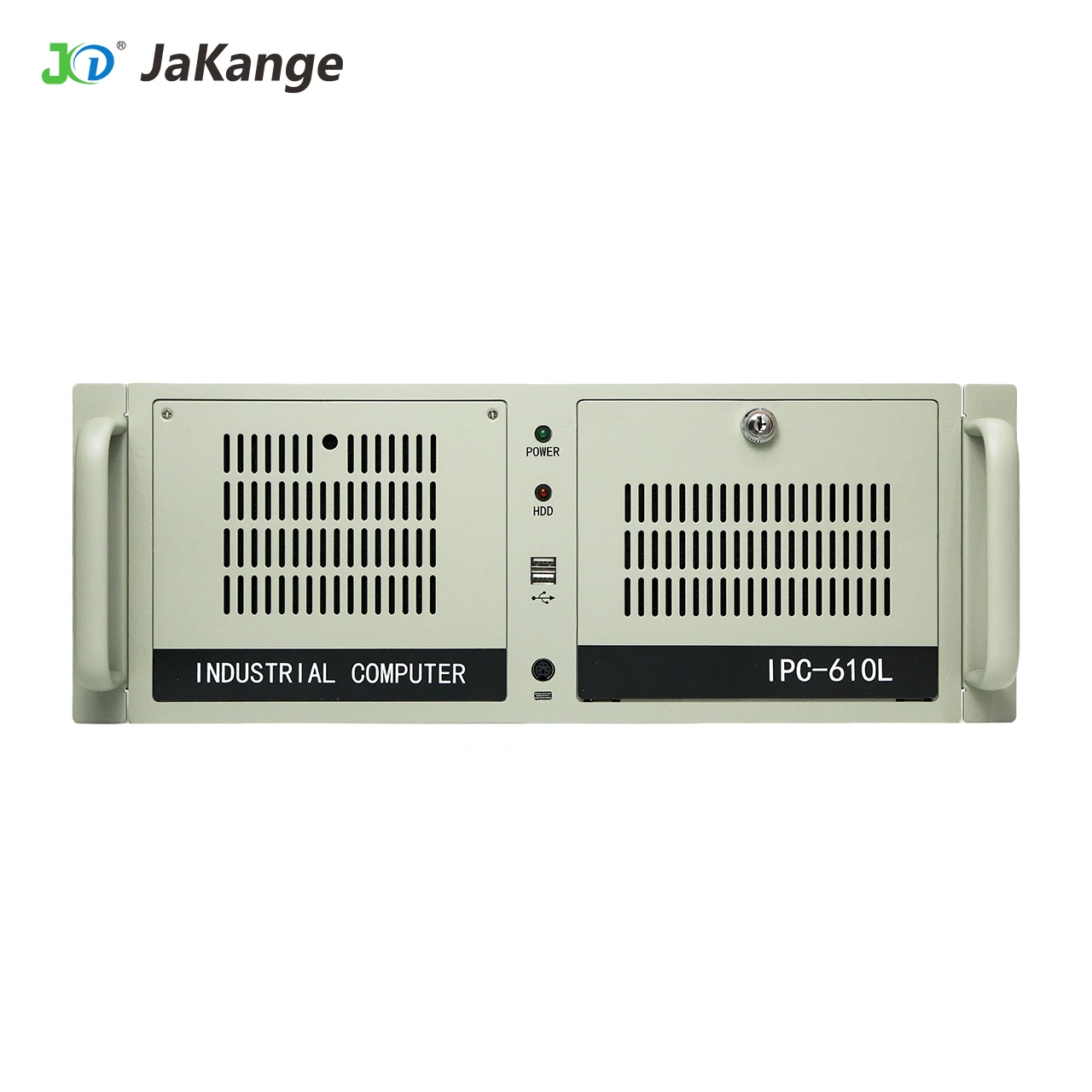

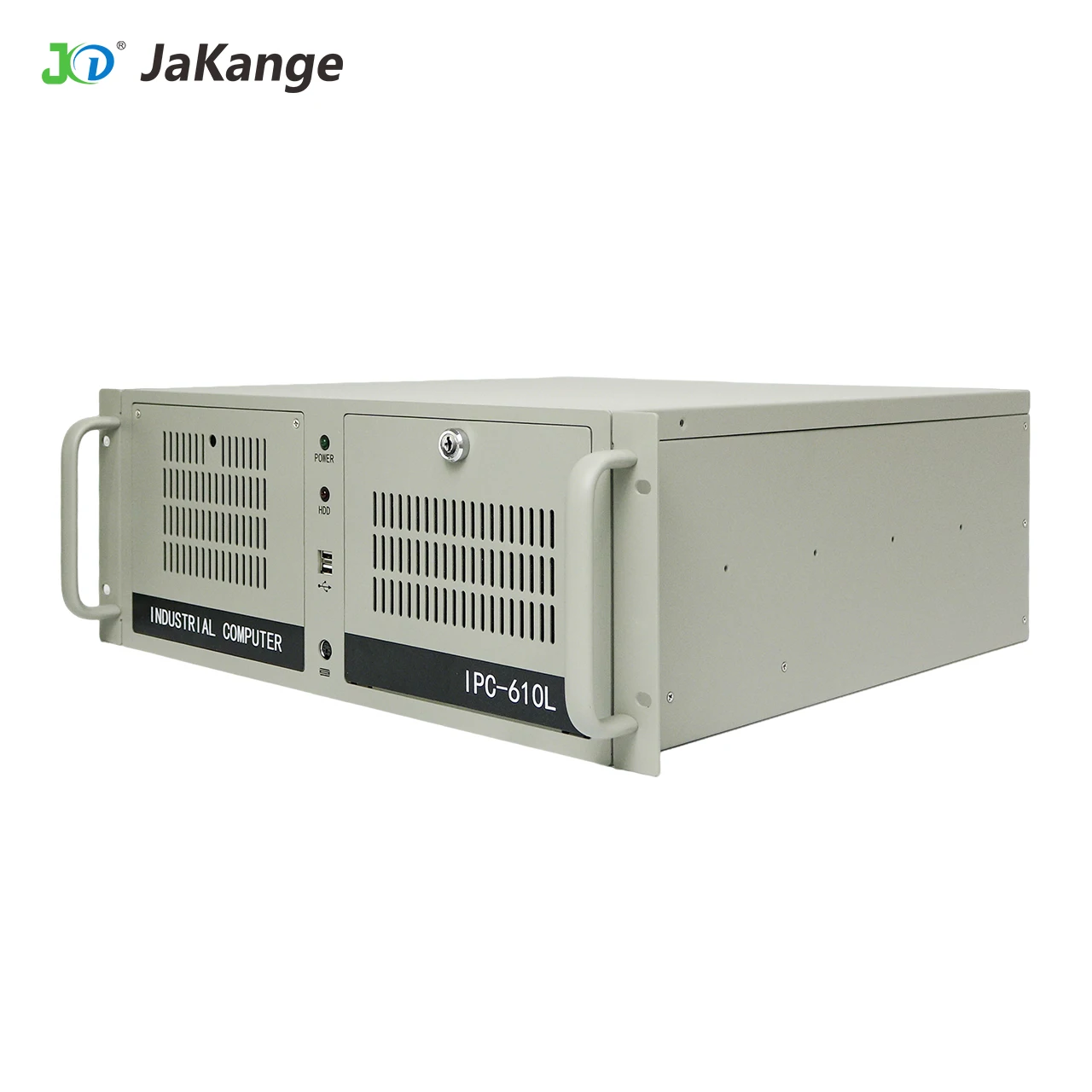

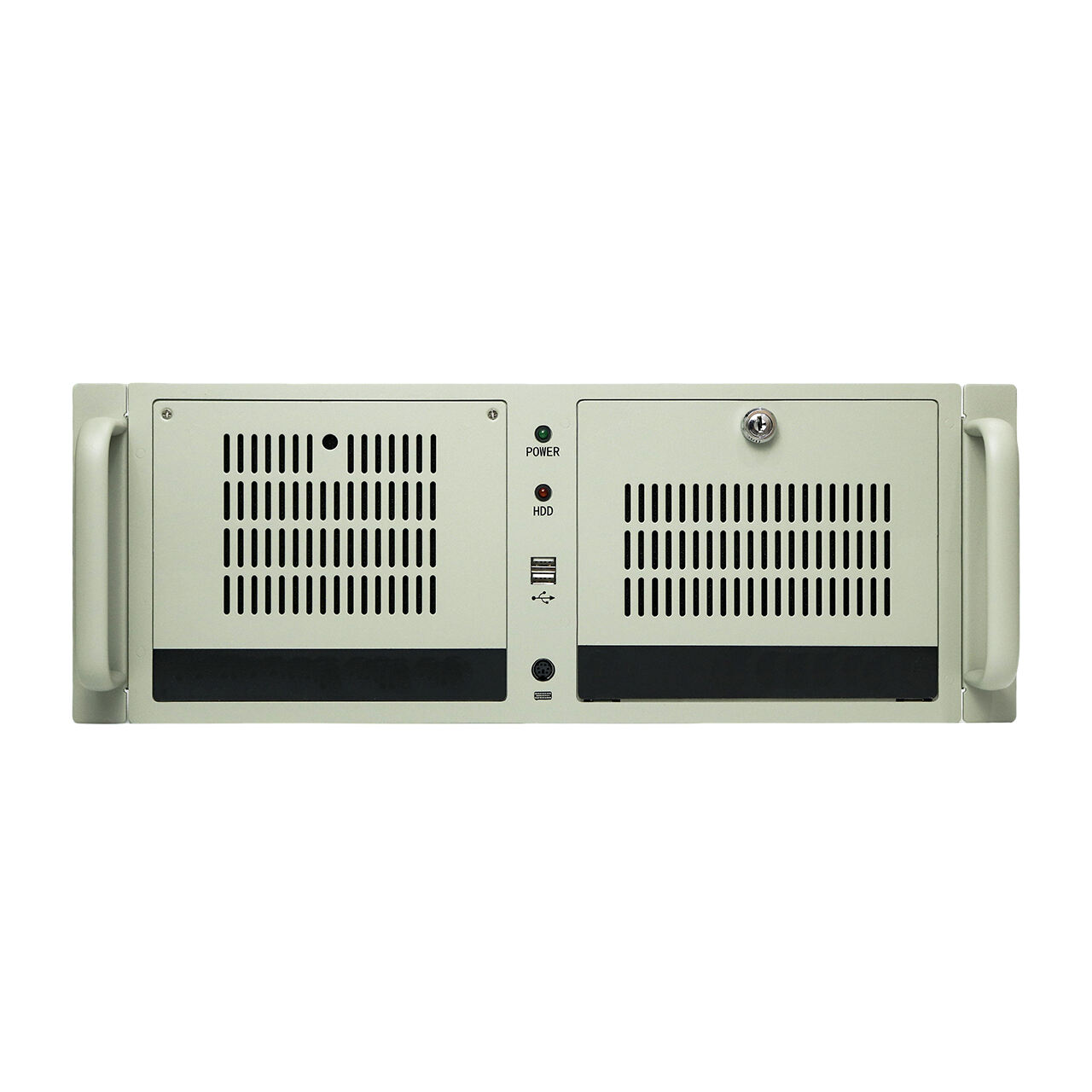

Standard 4U 19 inch overhead industrial computer

Panel design safety door to prevent non-professional operation

Reset button Built-in silent fan to provide good system Good heat dissipation protection

Three year warranty
