The White Ring Shadowless Light Source HM-RLC10060KC-W24, with an Outer Diameter of 100mm and an Inner Diameter of 73mm

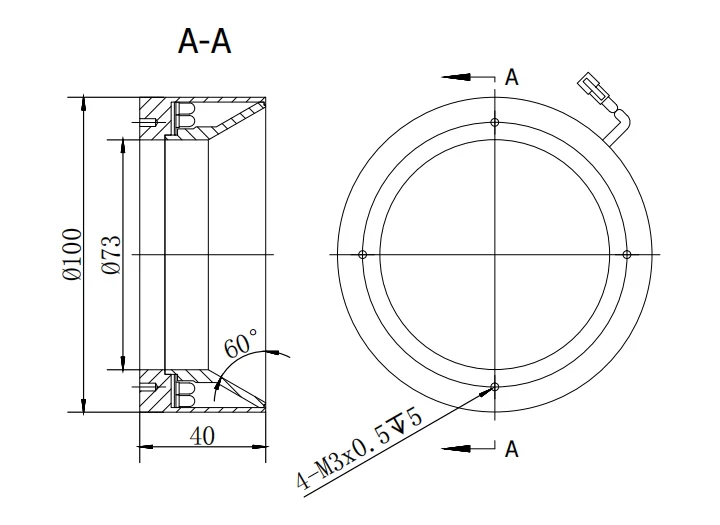

Specification parameters

Product name

Annular shadowless light source

Product model

HM-RLC10060KC-W24

outer diameter

100

inner diameter

73

angle

60°

Voltage

24V

Product Presentation

By changing the optical path to achieve high-angle and low-angle illumination, the surface texture and wrinkles of the object are effectively weakened, achieving a uniform image effect.

The shadowless light source, through the combination of multiple light sources, makes the light in the illuminated area more uniform, thereby reducing or eliminating shadows, and is suitable for various detection requirements.
