Specification parameters |
||||||||
Product name |

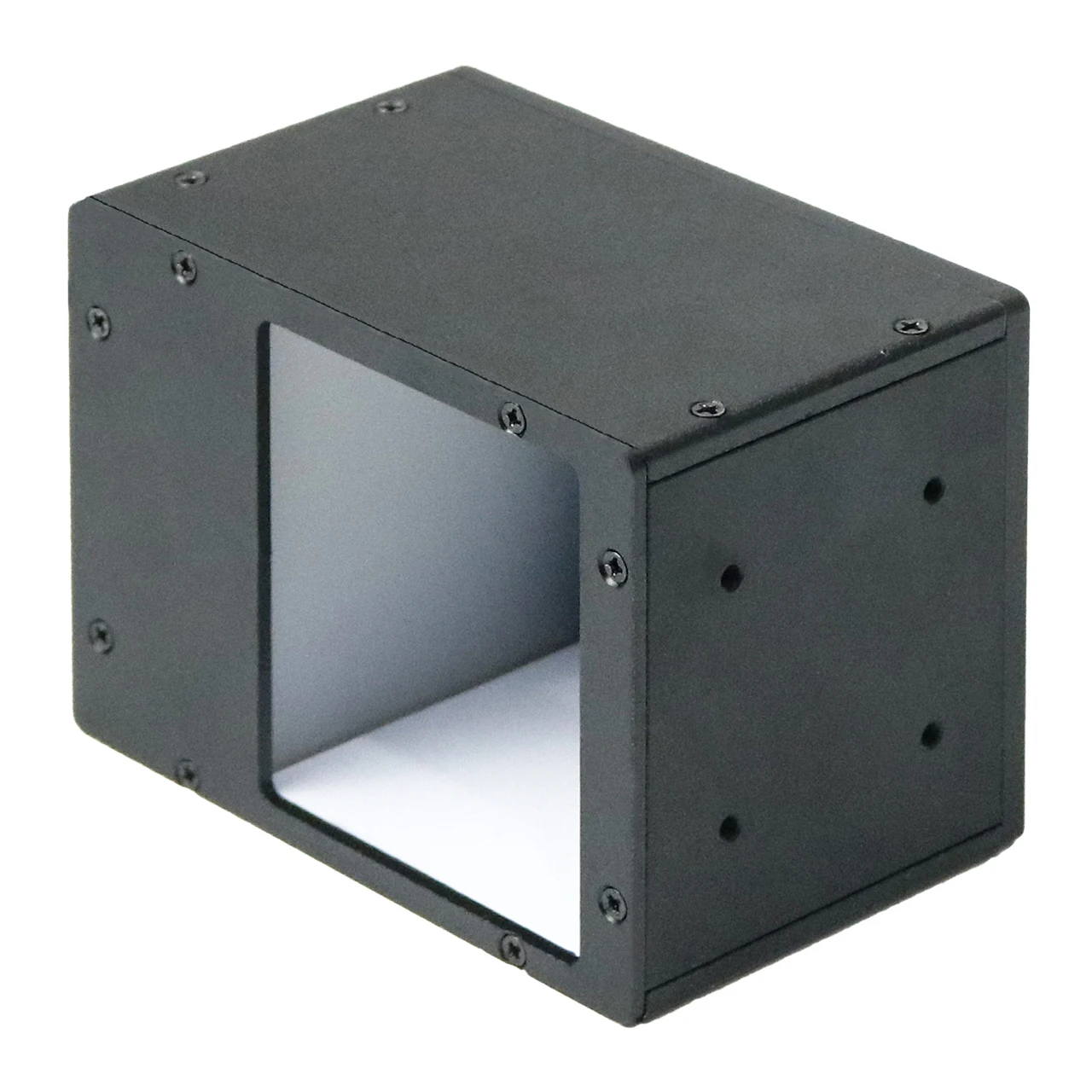

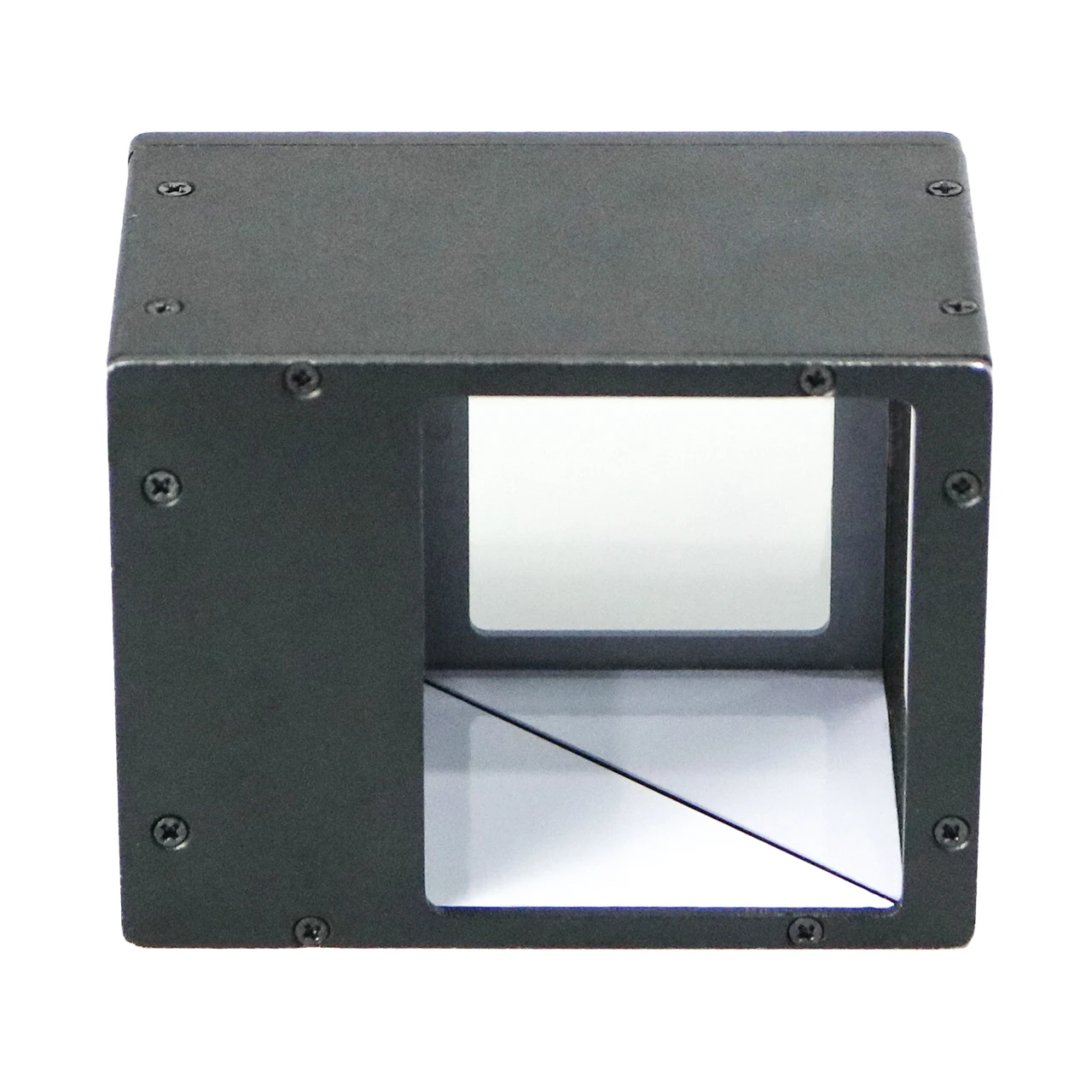

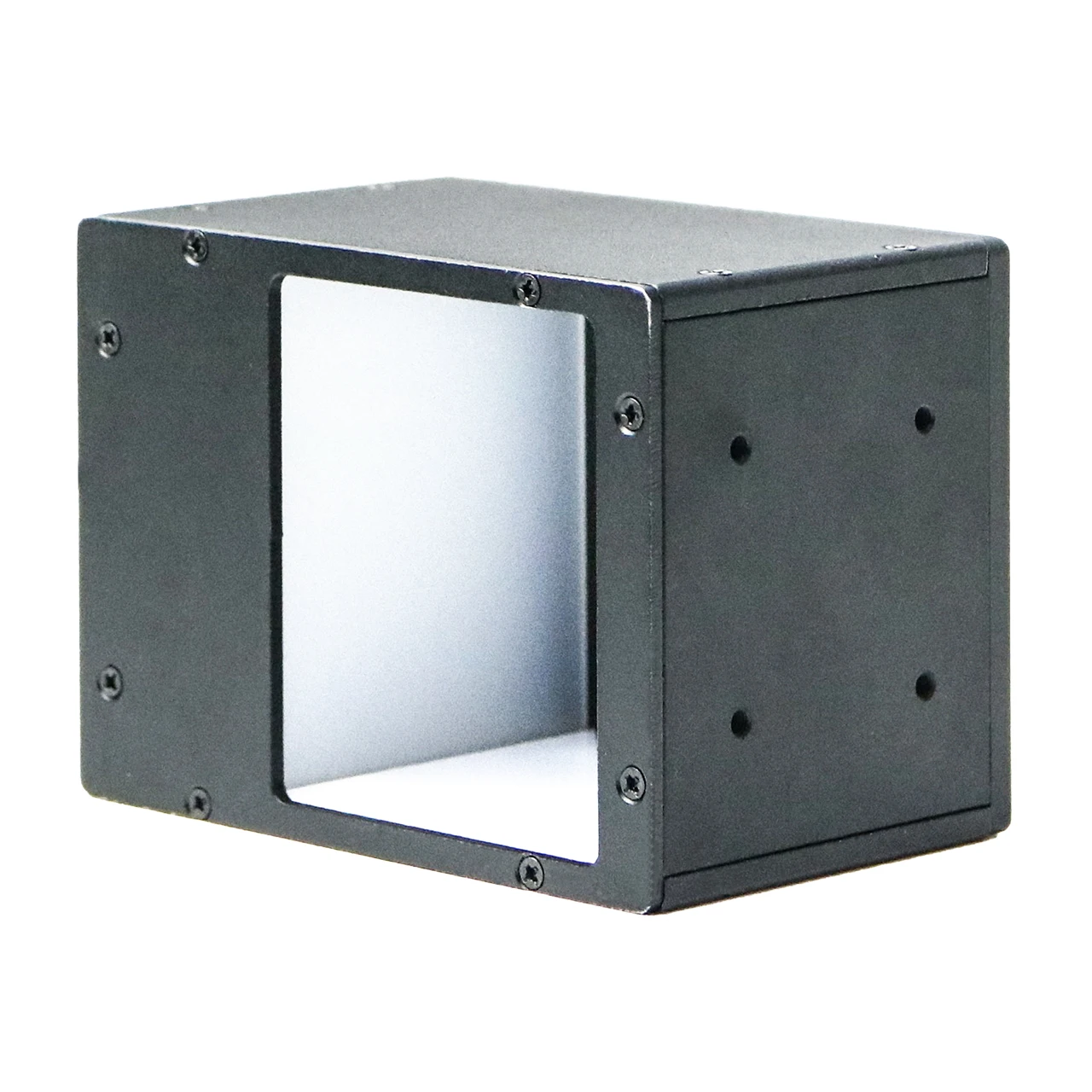

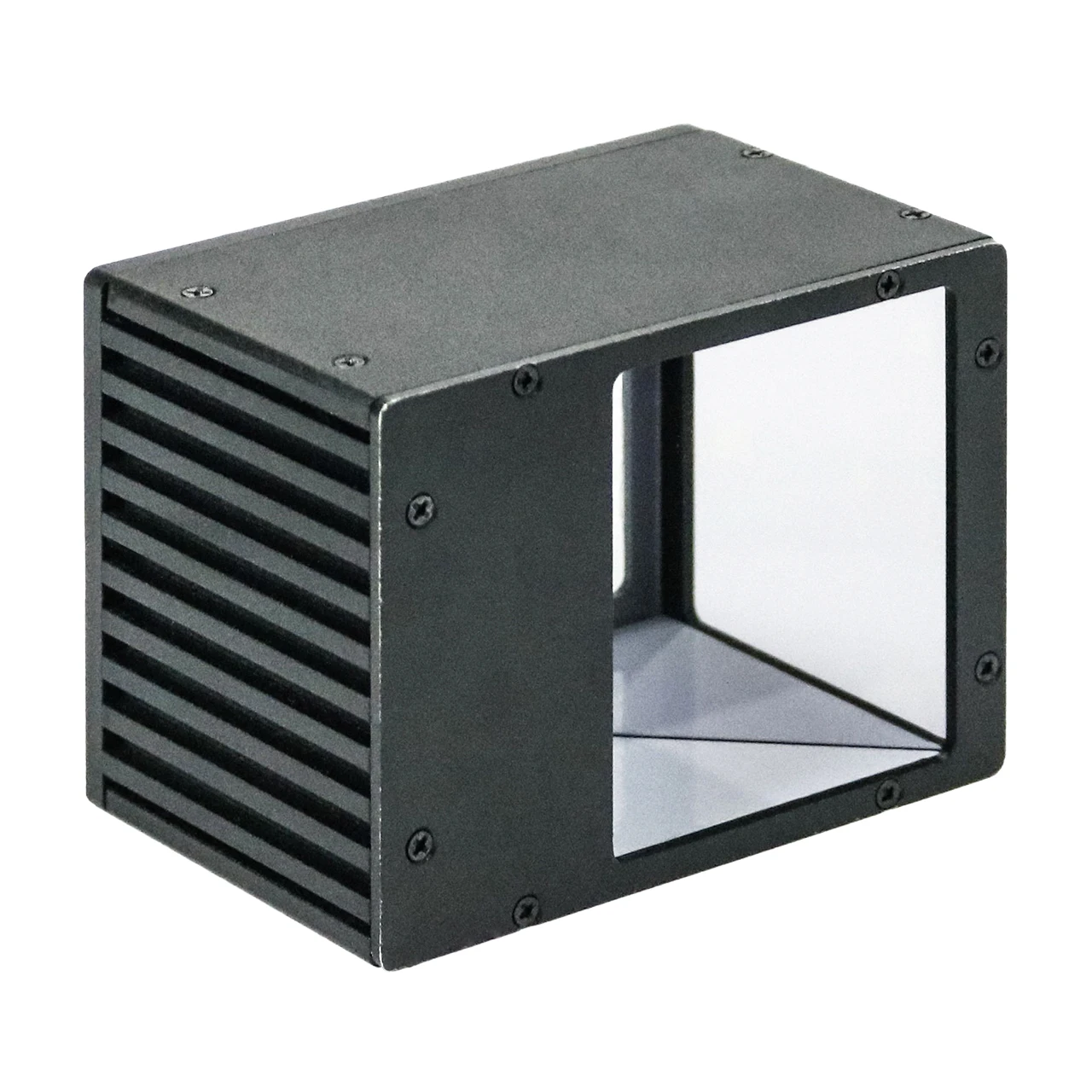

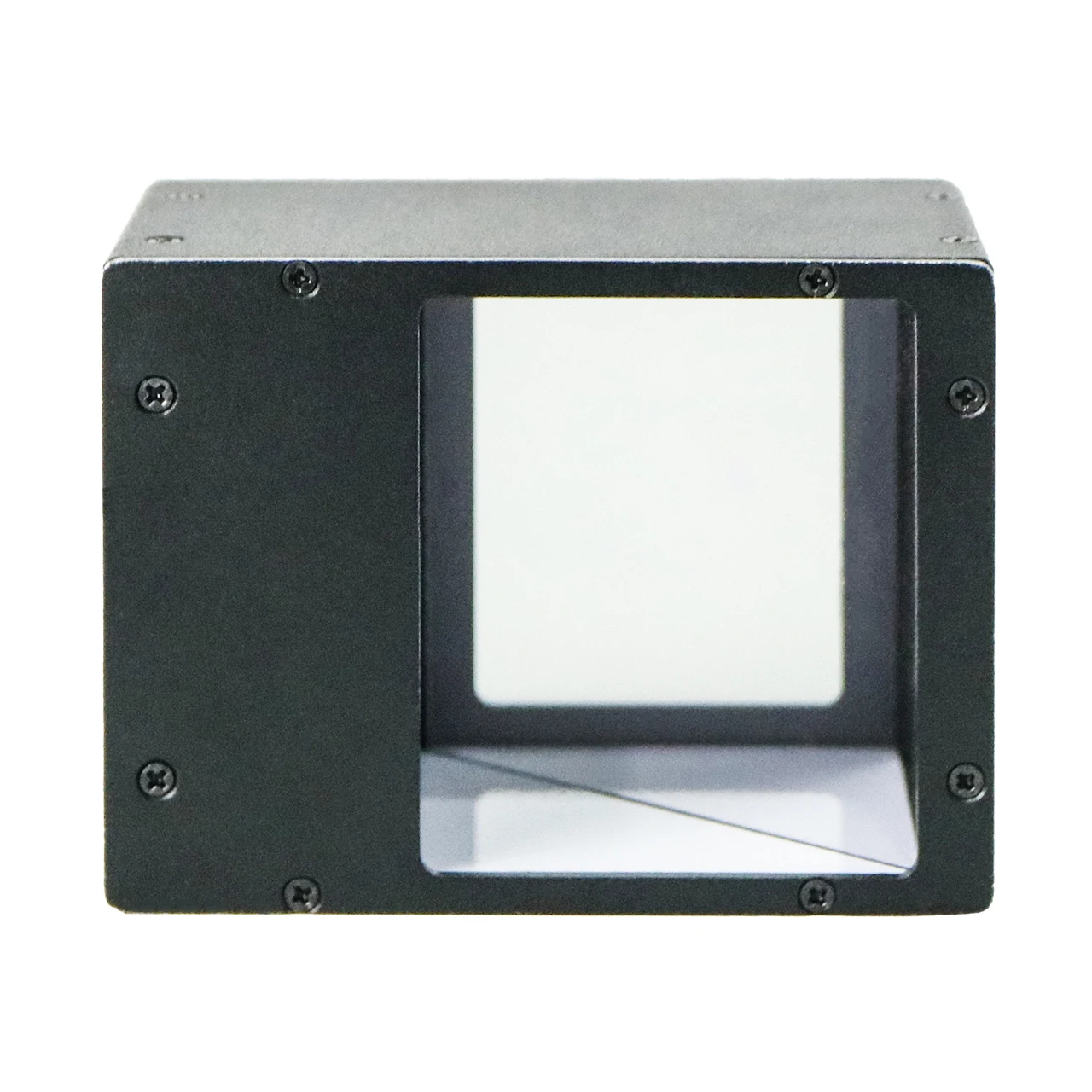

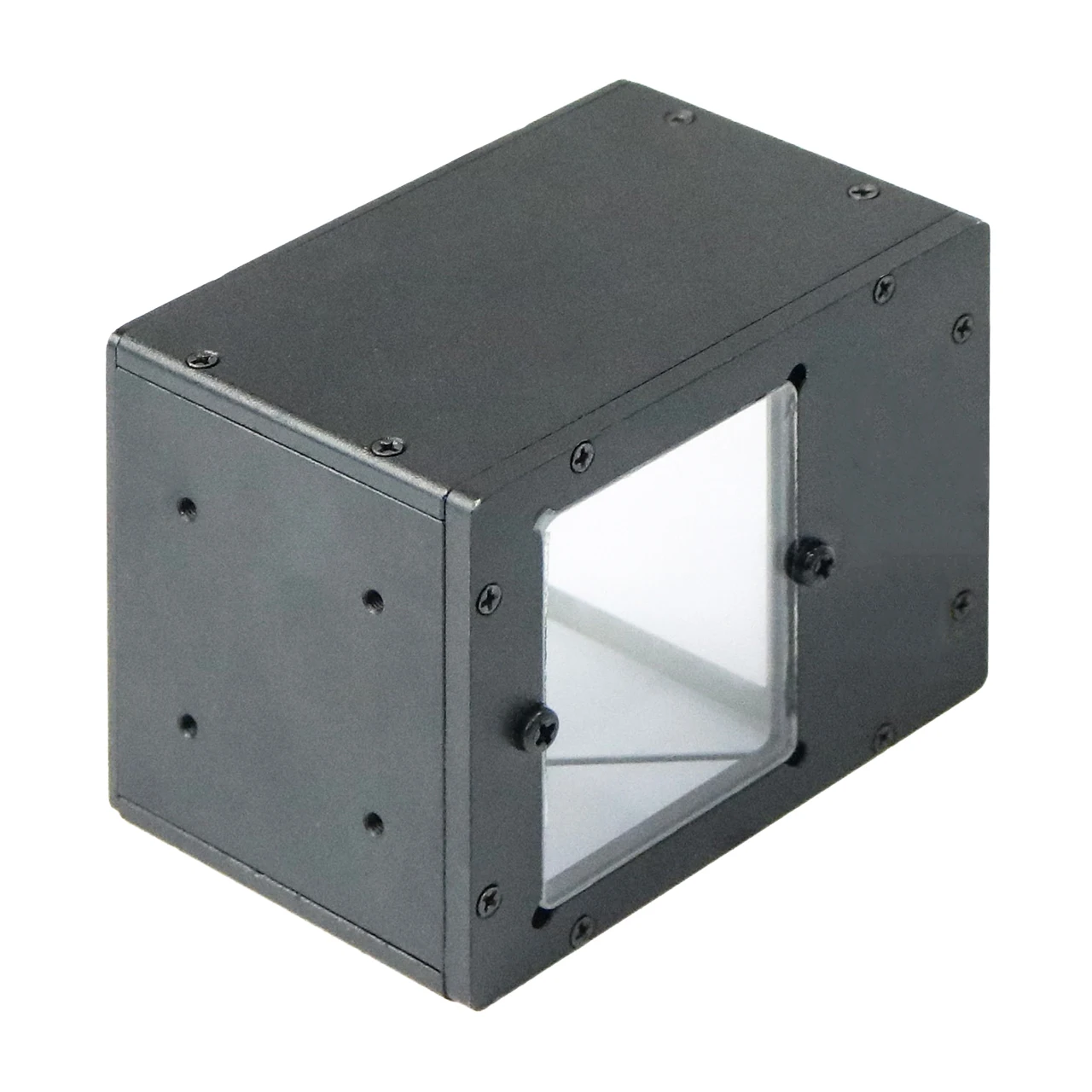

coaxial light source |
|||||||
Product model |
HM-CO75*75KC-G24 |
|||||||
light-emitting surface |
60*50mm |
|||||||
Voltage |
24V |
Product Presentation |
||||||||
By changing the optical path to achieve high-angle and low-angle illumination, the surface texture and wrinkles of the object are effectively weakened, achieving a uniform image effect. |
||||||||
The shadowless light source, through the combination of multiple light sources, makes the light in the illuminated area more uniform, thereby reducing or eliminating shadows, and is suitable for various detection requirements. |
Product Feature |
||||||||
High-density LED array, with significantly increased brightness |
||||||||
Independent heat dissipation mechanism enhances the stability of the light source and extends its service life. |
||||||||
The beam splitter adopts a special coating to reduce light loss and provide clear imaging. |
||||||||
It can suppress the reflective semi-mirror surface and eliminate ghosting in the image. |
Application Area |
||||||||
Detection of scratches, defects, etc. on highly reflective surfaces |
||||||||
Damage detection of chips and silicon wafers |
||||||||
Laser marking of characters, QR code recognition |
||||||||
Various characters and patterns on printed circuit boards |
||||||||
Barcode recognition |
||||||||
Mark point positioning, object edge positioning |
